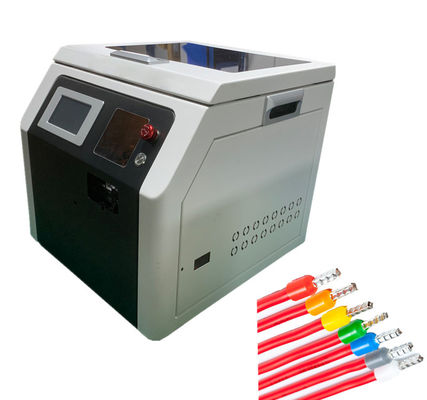

400W Automatic Mute Ferrule Terminal Crimping Machine
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-0525 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB SHenzhen |
| Packaging Details: | wooden case/box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500/sets per month |
|
Detail Information |
|||
| Specifications: | 0.5mm-2.5mm ( Length Of Terminal Conduit Less Than 12mm) 4.0mm (length Of Terminal Conduit Less Than 10mm) | Detection Device: | Terminal Supply Detection Material Shortage |
|---|---|---|---|
| Driving Mode: | Motor / Imported Ball Screw | Control Mode: | Touch Screen And Programmable Controller, Buzzer Driver |
| Wire Clamping Device: | Motor Drive, Clamping Force, Program Control | Crimping Device: | Motor Drive, Crimping Force, Program Control |
| Storage Capacity: | 100 Kinds Of Cable Crimping Data | Crimping Appearance: | Square/circular |
| Power Supply: | AC220V 50/60Hz 400W | Air Pressure: | 0.6-0.8Mpa (Use A Clean And Dry Air Source) |
| Dimensions: | L450mm*W350MM*H425mm | Weight: | About 68KG |
| Highlight: | Ferrule Terminal Crimping Machine,Mute Terminal Crimping Machine,400W Terminal Crimper |
||
Product Description
CX-0525 Automatic Mute Wire Striping Ferrule Terminal Crimping Machine
Feature Description:
1, Closed design of the whole machine, safe and reliable operation;
2, Touch screen operation, electric adjustment of stripping depth and length, and automatic saving of set parameters;
3, Automatic terminal supply, electronic four side crimping (square), no need to replace the crimping die;
4, Agile automatic trigger, fast and convenient;
5, Semi automatic operation and manual setting out;
6, Automatic induction, stripping, terminal feeding, crimping terminal, automatic feeding.
Technical Parameter:
| Model | CX-0525Insulated Pin Terminal Wire Stripping Crimping Machine |
| Specifications | 0.5mm-2.5mm ( Length of terminal conduit less than 12mm) 4.0mm (length of terminal conduit less than 10mm) |
| Detection device | Terminal supply detection material shortage |
| Driving mode | Motor / imported ball screw |
| Control mode | Touch screen and programmable controller, buzzer driver |
| Wire clamping device | Motor drive, clamping force, program control |
| Crimping device | Motor drive, crimping force, program control |
| Storage capacity | 100 kinds of cable crimping data |
| Crimping appearance | square |
| Power Supply | AC220V 50/60Hz 400W |
| Air pressure | 0.6-0.8Mpa (Use a clean and dry air source) |
| Dimensions | L450mm*W350MM*H425mm |
| Weight | about 68KG |
