Pre Insulated Ferrule Connector Wire Striping And Crimping Machine

Pre Insulated Ferrule Connector Wire Striping And Crimping Machine

Product Details:

Place of Origin: China (Mainland)
Brand Name: CHENXIN
Certification: ISO90001
Model Number: CX-0525

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: FOB SHenzhen
Packaging Details: wooden case/box
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 500/sets per month
Get Best Price Contact Now

Detail Information

Specifications: 0.5mm-2.5mm ( Length Of Terminal Conduit Less Than 12mm) 4.0mm (length Of Terminal Conduit Less Than 10mm) Detection Device: Terminal Supply Detection Material Shortage
Driving Mode: Motor / Imported Ball Screw Control Mode: Touch Screen And Programmable Controller, Buzzer Driver
Wire Clamping Device: Motor Drive, Clamping Force, Program Control Crimping Device: Motor Drive, Crimping Force, Program Control
Storage Capacity: 100 Kinds Of Cable Crimping Data Crimping Appearance: Square/circular
Power Supply: AC220V 50/60Hz 400W Air Pressure: 0.6-0.8Mpa (Use A Clean And Dry Air Source)
Dimensions: L450mm*W350MM*H425mm Weight: About 68KG
High Light:

Ferrule Connector Wire Crimping Machine

,

Pre Insulated Wire Crimping Machine

,

Pre Insulated Wire Striping Machine

Product Description

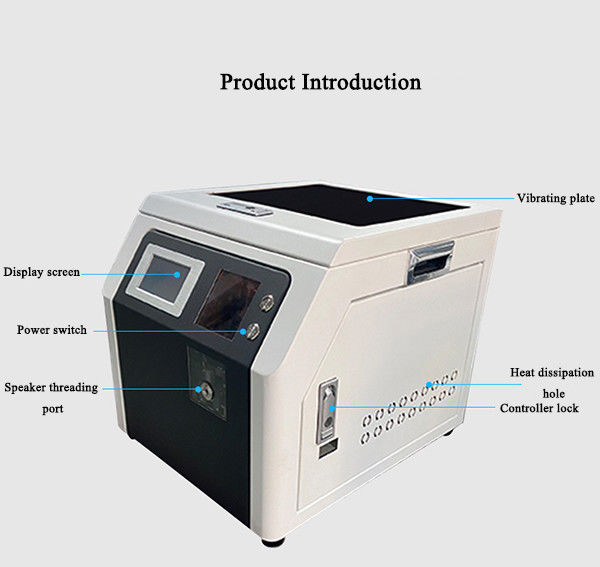

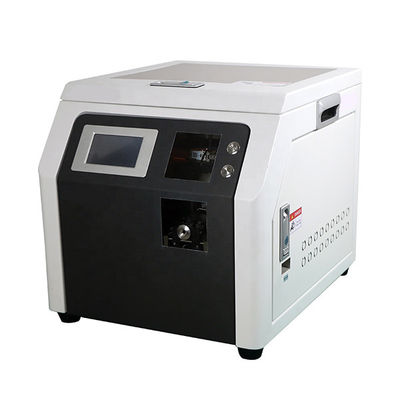

CX-0525 Pre-Insulated Ferrule Connector Wire Striping And Crimping Machine





Feature Description:

1, Closed design of the whole machine, safe and reliable operation;

2, Touch screen operation, electric adjustment of stripping depth and length, and automatic saving of set parameters;

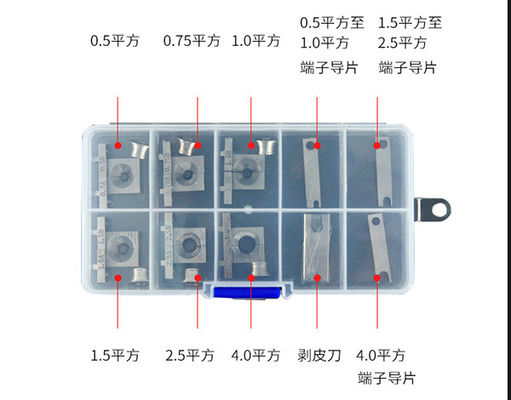

3, Automatic terminal supply, electronic four side crimping (square), no need to replace the crimping die;

4, Agile automatic trigger, fast and convenient;

5, Semi automatic operation and manual setting out;

6, Automatic induction, stripping, terminal feeding, crimping terminal, automatic feeding.



Technical Parameter:

Model CX-0525Insulated Pin Terminal Wire Stripping Crimping Machine

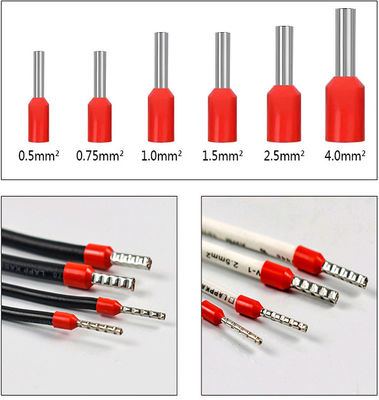

Specifications 0.5mm-2.5mm ( Length of terminal conduit less than 12mm) 4.0mm (length of terminal conduit less than 10mm)
Detection device Terminal supply detection material shortage
Driving mode Motor / imported ball screw
Control mode Touch screen and programmable controller, buzzer driver
Wire clamping device Motor drive, clamping force, program control
Crimping device Motor drive, crimping force, program control
Storage capacity 100 kinds of cable crimping data
Crimping appearance square
Power Supply AC220V 50/60Hz 400W
Air pressure 0.6-0.8Mpa (Use a clean and dry air source)
Dimensions L450mm*W350MM*H425mm
Weight about 68KG





























































Pre Insulated Ferrule Connector Wire Striping And Crimping Machine 0Pre Insulated Ferrule Connector Wire Striping And Crimping Machine 1Pre Insulated Ferrule Connector Wire Striping And Crimping Machine 2
