Product Details:

Place of Origin: China (Mainland)
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-950 / 1200 / 1500 / 2000 / 2500 / 6000

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: FOB, EX-WORK, CIF, CF
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Stripping Length: 3-30mm ( 30mm The Above Must Be Customized) Cutting Length: 42-99999mm
Operation Mode: Single Stroke And Wired Action Dimensions: W1700xD750xH150mm
Body Weight: 400 Kg Power: 1.0 KW
High Light:

1.0KW Wire Cutting Machine

,

30mm Wire Peeling Machine

,

42mm Electric Wire Stripping Machine

Product Description

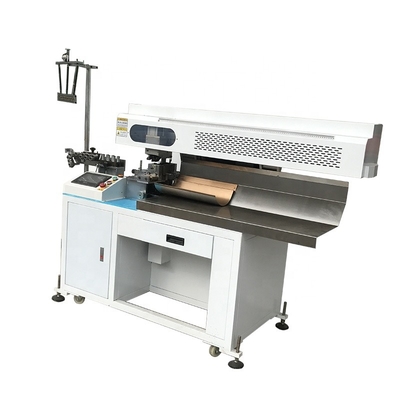

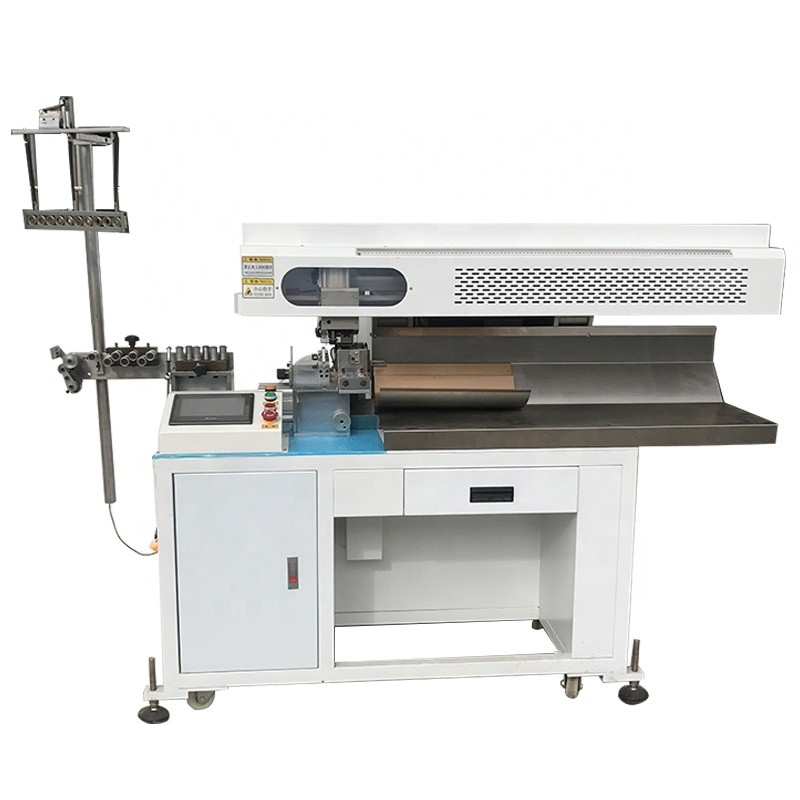

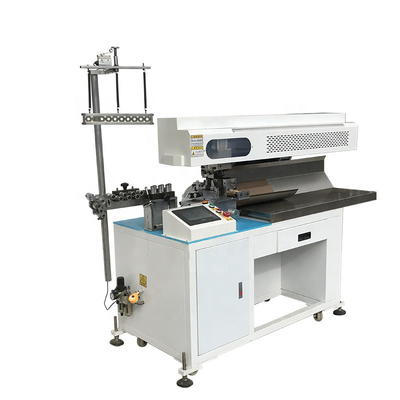

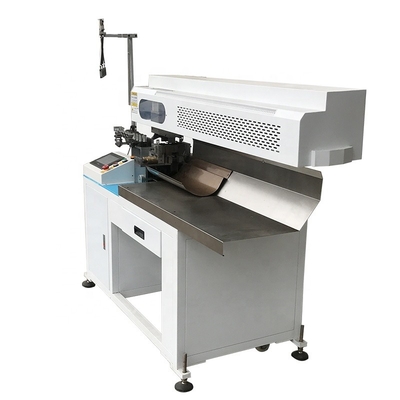

Automatic High Speed Wire Cutting Machine Peeling Machine Factory Direct Sales

Features:
This machine adopts imported servo motor control wire cutting, peeling action, make the cutting length more accurately, a test device, check out each standard wire tight, low pressure cylinder, motor, stuck abnormality, consistent counting display function, abnormal shutdown automatically and will check out the status display on the control panel, convenient to quickly eliminate reducing the shutdown time.
The best features are less adjustment technology, short adjustment time and easy operation.
Optional collocation RF-500 machine, complete the cable of the wire, wire cutting, such as peeling action, to enhance production efficiency.



Technical Parameter:

Model CX-950 High-speed wire cutting and stripping machine CX-1500 High-speed wire cutting and stripping machine CX-2000 High-speed wire cutting and stripping machine
Dimensions W1700xD750xH150mm W2300xD780xH165mm W3100xD780xH165mm
Body weight 400 Kg 480kg 600kg
Power 1.0 KW 1.5KW 2.2KW
Power Supply AC 220V AC 220V AC 220V
Stripping length 3-30mm ( 30mm The above must be customized) 3-30mm (30mm The above must be customized) 3-30mm ( 30mm The above must be customized)
Cutting Length 42-99999mm 42-100000mm 42-100000mm
Operation mode Single stroke and wired action Single stroke and wired action Single stroke and wired action
Cutting capacity AWG#10-AWG#28; FLAT CABLE USB,AC,RGB,1394,DC,PVC wire ect
