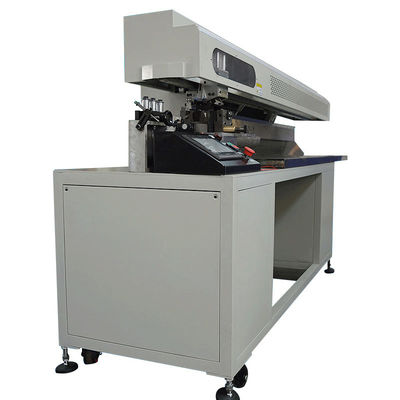

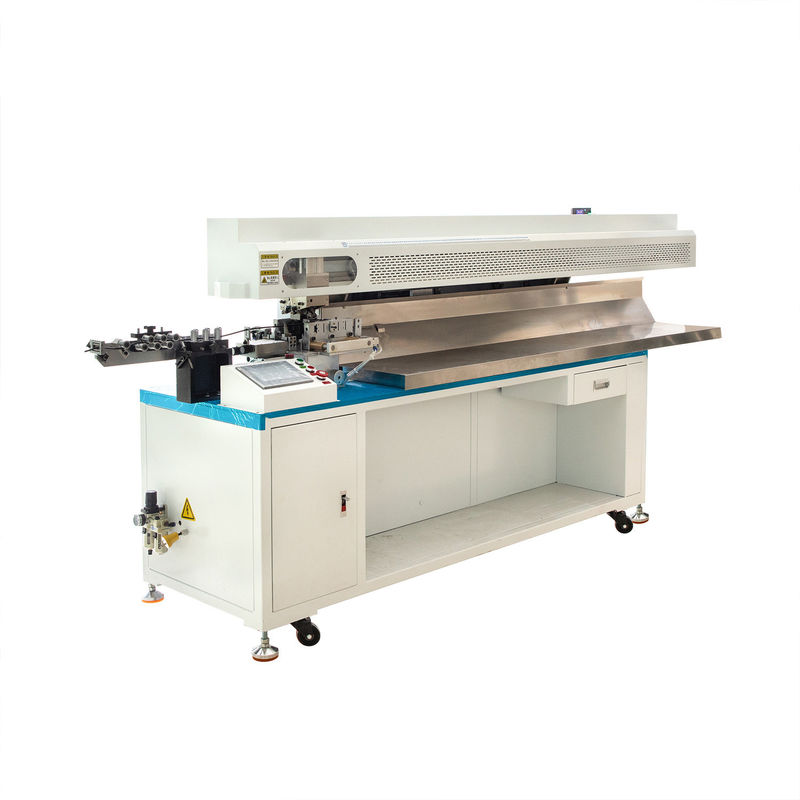

High Accurate Automatic Multiple Cable Cutting Stripping Machine With Servo Drive
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-950 / 1200 / 1500 / 2000 / 2500 / 6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB, EX-WORK, CIF, CF |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Stripping Length: | 3-30mm ( 30mm The Above Must Be Customized) | Cutting Length: | 42-99999mm |
|---|---|---|---|
| Operation Mode: | Single Stroke And Wired Action | Cutting Capacity: | AWG10-AWG28; FLAT CABLE |
| Dimensions: | W1700xD750xH150mm | Power: | 1.0 KW |
| High Light: | AWG10 Cable Cutting Stripping Machine,Electric Wire Stripping Machine ISO9001,30mm Electric Wire Stripping Machine |
||
Product Description
Automatic High Speed Wire Cutting Machine Peeling Machine Factory Direct Sales
Features:
This machine adopts imported servo motor control wire cutting, peeling action, make the cutting length more accurately, a test device, check out each standard wire tight, low pressure cylinder, motor, stuck abnormality, consistent counting display function, abnormal shutdown automatically and will check out the status display on the control panel, convenient to quickly eliminate reducing the shutdown time.
The best features are less adjustment technology, short adjustment time and easy operation.
Optional collocation RF-500 machine, complete the cable of the wire, wire cutting, such as peeling action, to enhance production efficiency.
Technical Parameter:
| Model | CX-950 High-speed wire cutting and stripping machine | CX-1500 High-speed wire cutting and stripping machine | CX-2000 High-speed wire cutting and stripping machine |
| Dimensions | W1700xD750xH150mm | W2300xD780xH165mm | W3100xD780xH165mm |
| Body weight | 400 Kg | 480kg | 600kg |
| Power | 1.0 KW | 1.5KW | 2.2KW |
| Power Supply | AC 220V | AC 220V | AC 220V |
| Stripping length | 3-30mm ( 30mm The above must be customized) | 3-30mm (30mm The above must be customized) | 3-30mm ( 30mm The above must be customized) |
| Cutting Length | 42-99999mm | 42-100000mm | 42-100000mm |
| Operation mode | Single stroke and wired action | Single stroke and wired action | Single stroke and wired action |

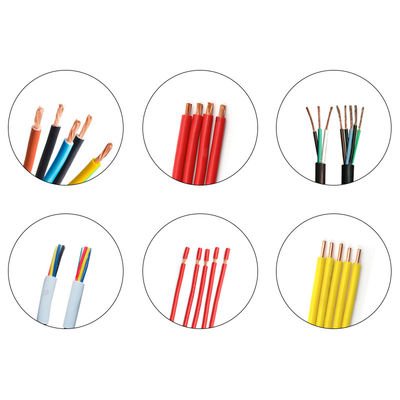

| Cutting capacity | AWG#10-AWG#28; FLAT CABLE | USB,AC,RGB,1394,DC,PVC wire ect | |
