Curly Flexible Telephone Cable Coil Winding Machine Rj9 Connectors 4p4c Spring Loaded
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Model Number: | CX-RJ02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Wire Rod Diameter(provide By Customer): | 12mm(standard Model) | Wire Rod Length(provide By Customer): | Max.900mm |
|---|---|---|---|
| The Direction Of Rotation Around The Rod: | Positive And Negative | The Total Length Of The Retracted Cable: | 600mm |
| Diameter Of Cable: | 6-7mm | Cable Clips: | Customized According To Customer's Wire And Rod. |
| Air Presuure: | 0.5-0.6Mpa | Voltage: | AC 220V 50/60HZ(customized) |
| Dimension: | L 1560mm*W 960mm*H1260mm | Function: | Coil Winding |
| High Light: | Telephone Cable Coil Winding Machine,4p4c Wire Winding Machine,Rj9 Connectors Wire Winding Machine |
||
Product Description

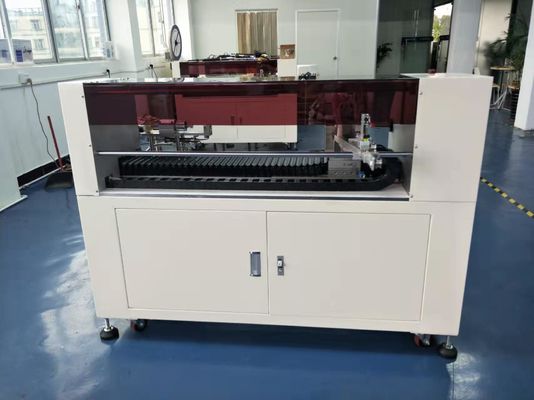

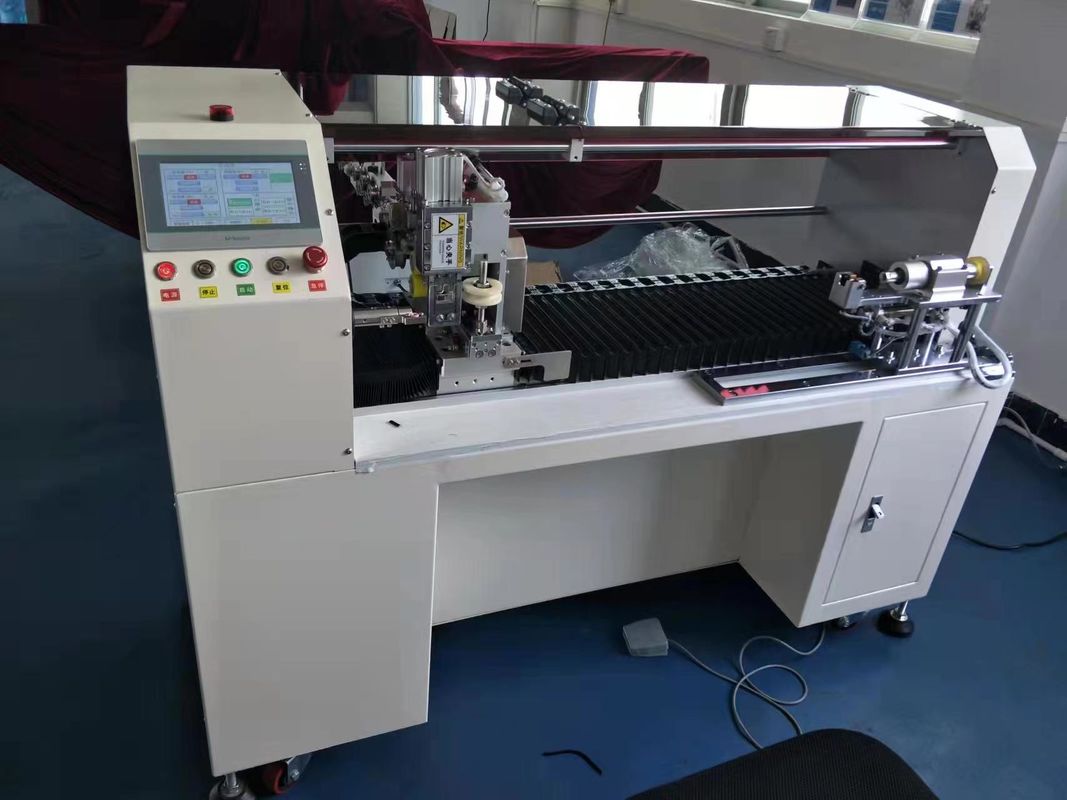

RJ11 Connectors (4P4C) Flexible Telephone Cable Curly Coil Automatic Making Machine
Technical Parameter
| Wire Rod diameter(provide by customer) | 12mm(standard model) |
| Wire Rod Length(provide by customer) | Max.900mm |
| The direction of rotation around the rod | Positive and negative |
| The total length of the retracted cable | 600mm |
| Diameter of cable | 6-7mm |

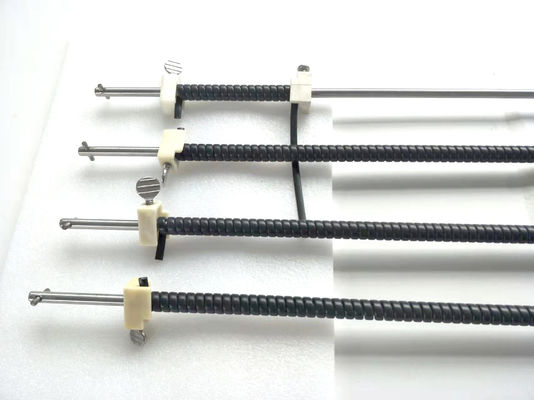

| Cable Clips | Customized according to customer's wire and rod. |
| Air Presuure | 0.5-0.6Mpa |
| Voltage&Frequency | AC220V 50/60HZ(customized) |
| Dimension | L 1560mm*W 960mm*H1260mm |
| Weight | 300kg |
Description:
1, This machine is specially used for automatic coiling of telephone headset Flexible telephone cable.
2, Simple operation and high efficiency.
3, Advanced software and touch screen technology make operation easy.
4, All parameters of the machine are operated on the display screen.
5, Cable Clips, Wire Rod diameter can be customized according to customer requirements.
Festures: The main operation interface, the operations that can be performed on this interface include switching between Chinese and English interfaces, basic settings of wires and rods, output settings, speed settings, winding mode switching, three-axis linkage mode switching, machine operating mode switching, etc.
3. The machine has three winding modes, which are the coiled body length mode.wire total length mode,number of turns mode. Click the button on the screen to switch according to your needs.
