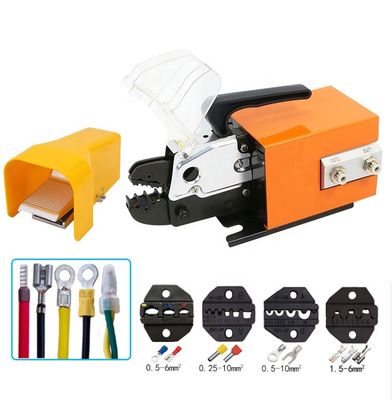

Multi Functional Pneumatic Wire Terminal Crimping Machine CX-AM-10 1.3T Automatic
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CX |
| Certification: | ISO |
| Model Number: | CX-AM-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Carton |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T |
| Supply Ability: | 500sets per month |
|
Detail Information |
|||
| Features: | Foot Pedal Design | Usage: | Crimp |
|---|---|---|---|
| Air Pressure: | 0.1-4Mpa | Crimping Force: | 13.5 KN |
| Dimension: | 260*120*140mm | Weight: | 4kg |
| High Light: | Multi Functional Wire Terminal Crimping Machine,Pneumatic Wire Terminal Crimping Machine,13.5KN Terminal Crimping Machine |
||
Product Description

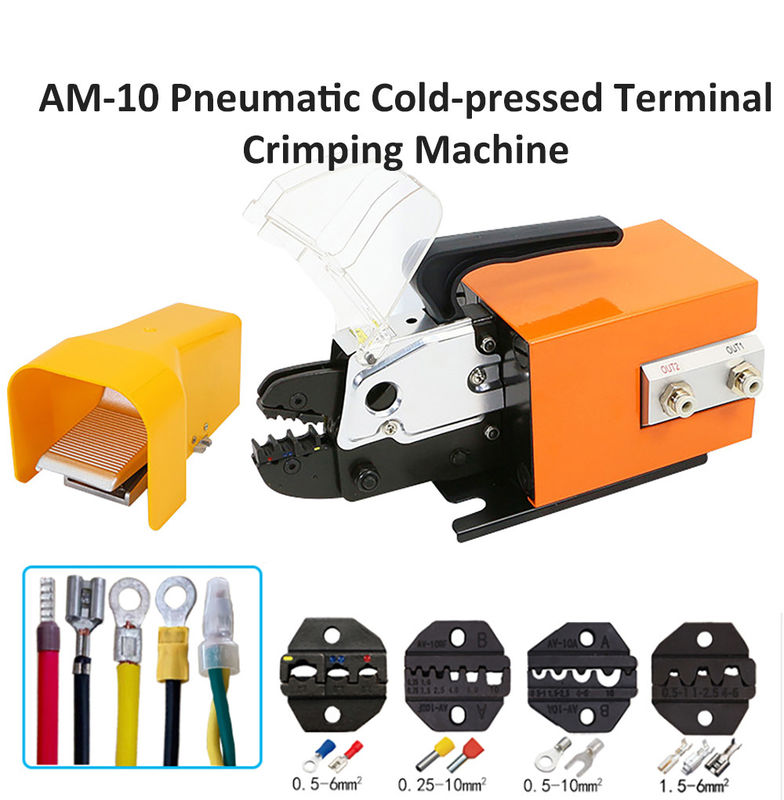

CX-AM-10 1.3T Multi-Functional Pneumatic Type Terminal Crimping Machine
Description
This product is driven by a double-acting standard cylinder, which has the advantages of large crimping output and fast crimping speed, and is suitable for crimping of medium and large quantities of terminals.
Features
Air Connection
The machine and foot pedal connected to the cprresponding hole, convenient and safe.

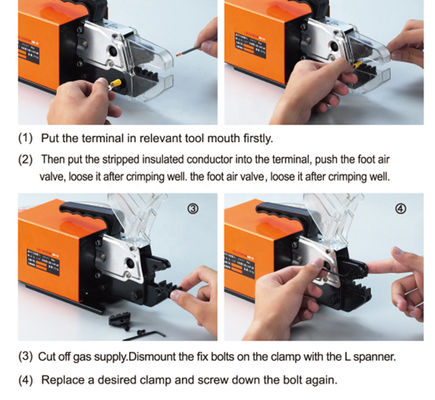

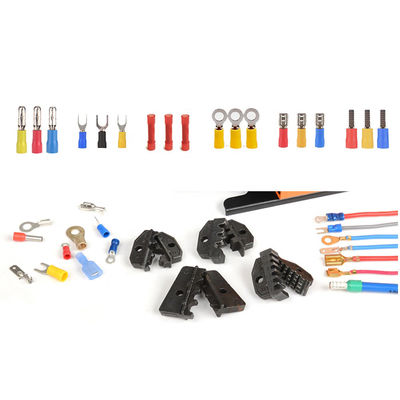

Replaceable Jaws
Easy change to different size wire dies, meet various crimping needs.
Foot Pedal Design
The crimping effect is more accurate and convenient.
Technical Parameter
| Model | AM-10 |
| Crimping Force | 13.5 KN |
| Air Pressure | 0.4 - 1 MPa |

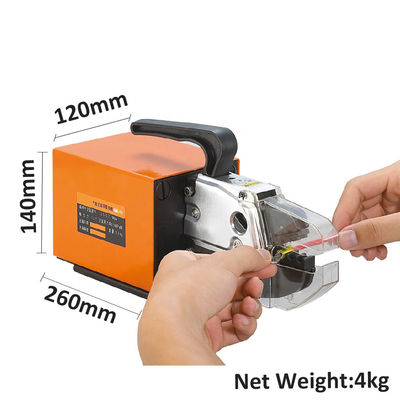

| Dimension | 260 * 120 * 140 mm |
| Weight |
4 kg |
