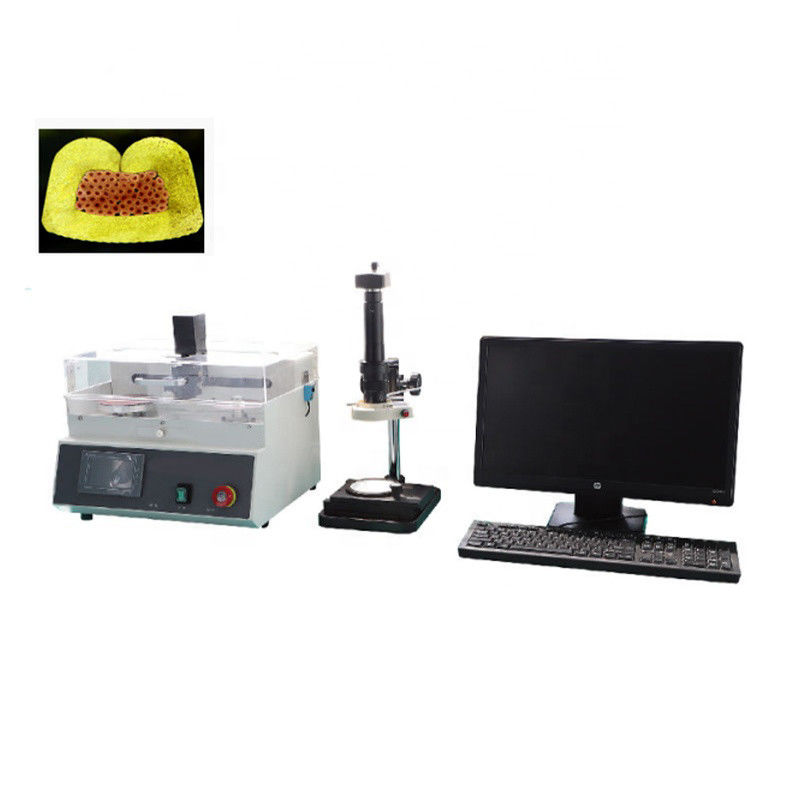

Bench Top Test Crimping Terminal Cross Section Analyzer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Model Number: | CX-300S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Export Case |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Features: | Fast Analysis Technology | Usage: | Testing |
|---|---|---|---|
| Measuring Range: | 0.01-95mm2 | Rotation Rate: | 0~4000 Rpm |
| Warranty: | 1 Year | Power: | 220V±22V 50Hz±1Hz, 180W |
| High Light: | 4000rpm Terminal Cross Section Analyzer,Crimping Terminal Cross Section Analyzer,95mm2 Cross Section Analysis System |
||
Product Description
Bench Top Test Crimping Terminal Quality Terminal Cross Section Analyzer Machine Cross Section Analysis System
Features:
1. Mainly used on cross section testing after terminal crimping;
2. Fast analysis technology of new terminal crimping;
3. The processing of cutting and grinding is in the same chamber, to ensure consistency of the direction of the cutting and grinding;
4. Efficiently saving time of operation and easy maintenance ;
5. The transmission technology of Japan made high precision ball screw can effectively ensure the cutting precision,and the grinding technology of Z-axis fine adjustment ;
6. With imported ultra thin cutting disk, it overcome the defect of deformed terminal ;
7. High measuring precision, stable performance, strong capability of resisting disturbance;
8. Brushless motor, low consumption, dual motor independent control, stepless debugging;
9. The rotary data collecting system, which can automatically choose the related speed for the different terminals.
Technical Parameter
| Model | CX-300S |
| Measuring range | 0.01-95mm2 |
| Cutting speed | 0~4000rpm (Speed adjustable) |
| Grinding speed | 0~4000rpm(Speed adjustable) |
| Metallographic sandpaper | 1200# |
| Cutting disk | ∅150x 0.5mm |
| Rotation rate | 0~4000 rpm |
| Image forming system |
HD 5.0MP, CCD industrial camera USB, microscope: 0.7X~4.5X ; Video: 16~320X,zoom ratio: 6.5:1; working distance: 100mm; movable distance : 250mm ; measuring precision: 0.001mm. |
| Power | 220V±22V 50Hz±1Hz, 180W |
| Weight | 30KG |
| Dimension | 457 x 329 x 300mm |
