Crimping Terminal Cable Drum Digital Tensile Testing Machine Pull
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Model Number: | CX-25D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Export Case |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Testing | Test Speed: | 70-270 Mm/min(choose By Customer) |
|---|---|---|---|
| Working Voltage: | 110-220V | Warranty: | 1 Year |
| Customized Support: | Software Reengineering | Rated Load: | 50-500N / 100-1000N |
| High Light: | 220V Tensile Testing Machine,270mm/min Tensile Testing Machine,Pull Tensile Strength Testing Machine |
||
Product Description
Hot Sale Crimping Terminal Cable Drum Digital Tensile Testing Machine Pull Tensile Strength Testing Machine
Features

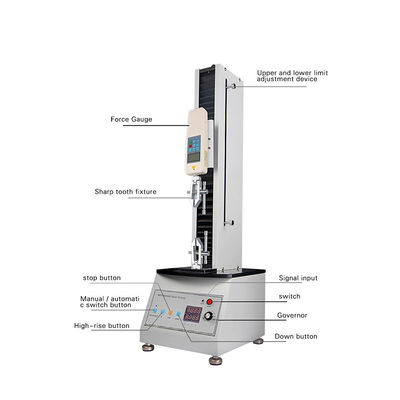

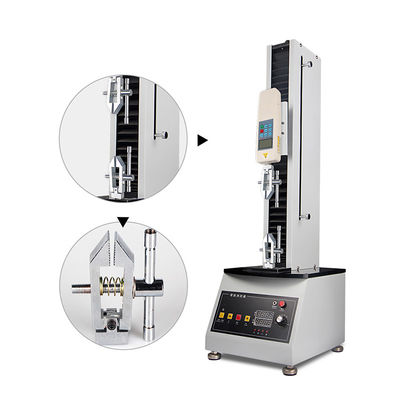

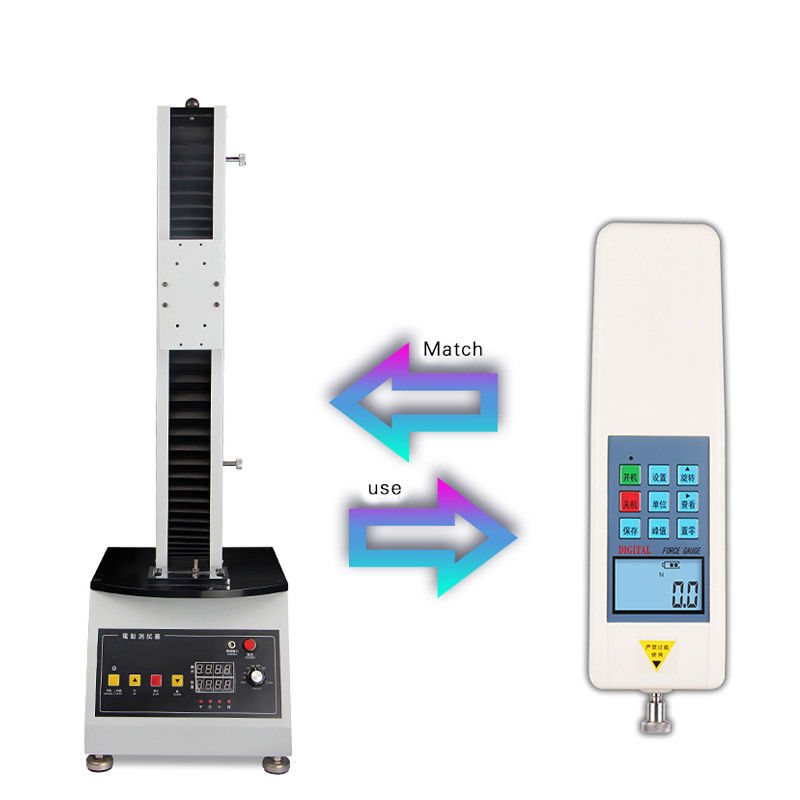

Single-column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge. The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as stepless speed regulation, manual (point) and automatic control switching functions. Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.
1. Electric load, stepless speed regulation, gear drive
2. Compact structure, stable drive
3. Simple operation, able to be used with various kinds of clips
Technical Parameter
| Model | CX-25D--200-500N | CX-25D-400-500N | CX-25D-700-500N | CX-25D-200-1000N | CX-25D-400-1000N | CX-25D-700-1000N |
| Rated load | 50-500N | 100-1000N | ||||
| Effective travel | 200mm | 400mm | 700mm | 200mm | 400mm | 700mm |
| Test speed | 70-270 mm/min(choose by customer) | |||||
| Working voltage | 110-220V | |||||
| Outline dimension | 250×340×780 | 250×340×980 | 250×340×1270 | 250×340×780 | 250×340×980 | 250×340×1270 |
| Weight | 38kg | 40kg | 42kg | 38kg | 40kg |
42kg
|
