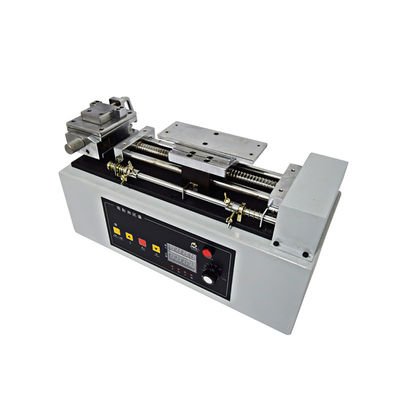

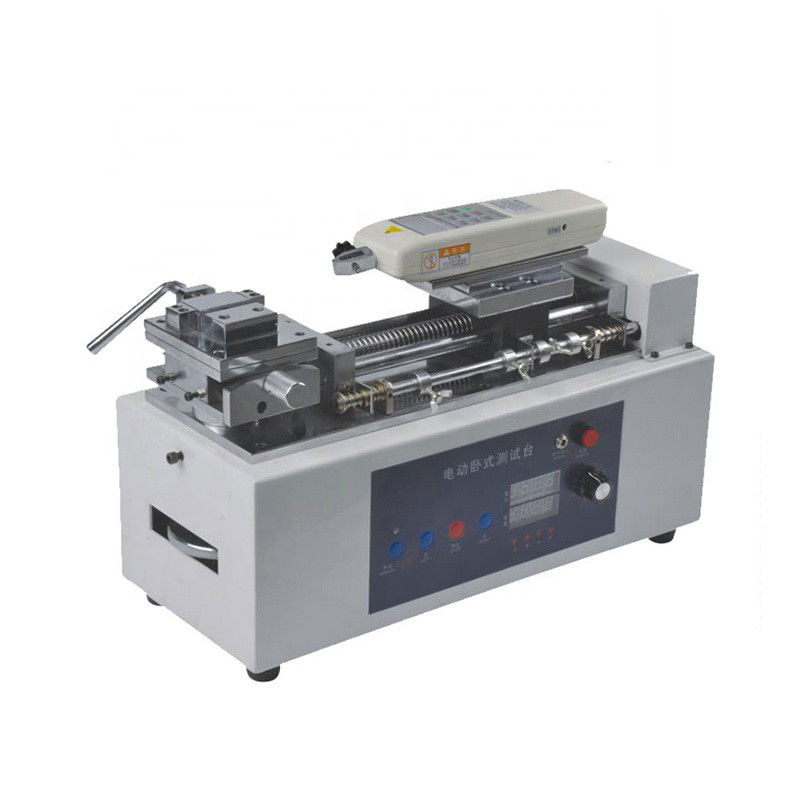

Arbor Valve Manual Control Pressure Pull Spring Force Tester 500N 150mm
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Model Number: | CX-25S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Export Case |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Testing | Range: | 0-500N (1000N Can Be Customized) |
|---|---|---|---|
| Effective Formation: | 150mm (280mm Can Be Customized) | Warranty: | 1 Year |
| Single Package Size: | 55X28X25 Cm | Single Gross Weight: | 41.000 Kg |
| High Light: | Arbor Valve Spring Force Tester,500N Spring Force Tester,150mm Spring Force Tester |
||
Product Description
Arbor Valve Manual Control Pressure Pull Force Spring Tester

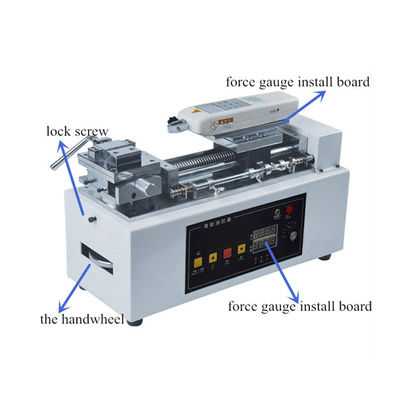

Feature
- Multiple Collocation Options The test bench is compatible with diverse tension Meter.
- Double Guide Rod Structure Double fulcrum to strengthen support stability.
- Height Adjustable Change the height by adjusting the gear.
- Fixed Chuck Fix the measured object so that the measured obiect will not move and the measurement result is more accurate
Technical Parameter
| Model | CX-25S |
| Range | 0-500N (1000N can be customized) |
| Effective formation | 150mm (280mm can be customized) |
| Test speed | 25-500mm/min |
| Operating Voltage | AC220V |
| Machine dimension | 470*220*225mm |
| Weight |
35 kg |
