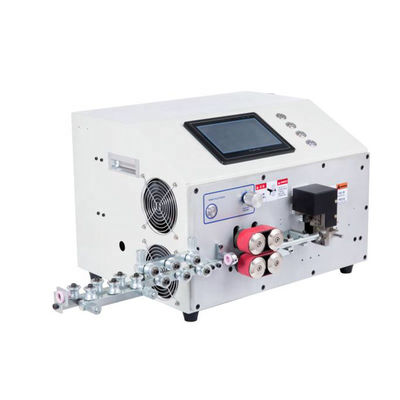

11mm Wire Cable Cutting Strip Bending Machine CX-08D High Speed

11mm Wire Cable Cutting Strip Bending Machine CX-08D High Speed

Product Details:

Place of Origin: China (Mainland)
Brand Name: CX
Model Number: CX-08D

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Packaging Details: Export Wooden Case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Usage: Strip And Bend Max. Conduit Diameter: 11mm
Wire Range: 0.1-25mm2 Length Accuracy: ±(0.2*L)mm
Power Supply:: 500W 220V/110V 50/60HZ Machine Dimension: 400mm*515mm*345mm
Cutting Length: Up To 5m Air Pressure: 0.4-0.6Mpa
Weight: 45KG Single Package Size: 54X53X41 Cm
High Light:

11mm Strip Bending Machine

,

220V Strip Bending Machine

,

High Speed Electric Wire Stripping Machine

Product Description

CX-08D High Speed Wire Cable Cutting Stripping Bending Machine



Features:

LCD Screen with Programable Setting
Different modes and fast production setup for different applications. process.

4-Wheel Driving

Ensure the smooth cutting and stripping
High Speed and Steady Blades

Tungsten steel material is selected

Standard Parts Prepared

Protective coveroptional guide tubes and pratical toolings.



Technical Parameter

Model CX-08D
Wire range 0.1-25mm2
Max. conduit diameter 11mm
Cutting length Up to 5m
Stripping length Head stripping (0-30mm) Tail stripping (0-20mm)
Foldable shape

Bendable U-shape, Z-shape, clockwise

fold,Counterclockwise folding, bending angle adjustable 30 degrees, 45 degrees,90 degrees - 180 degrees

Stripping speed 2000-3000 pcs/hour (length=100mm)
Blade material Imported high speed steel
Drive mode 4-wheel drive
Stripping accuracy ±0.2mm
Air pressure 0.4-0.6Mpa
Display mode Chinese and English operation interface can be switched to each other (using 7 inch touch screen)
Power supply 500W 220V/110V 50/60HZ
Dimensions 400mm*515mm*345mm
Weight 45KG
