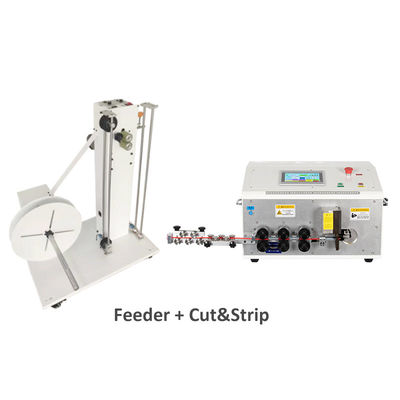

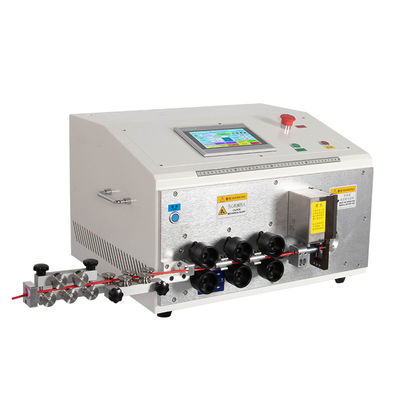

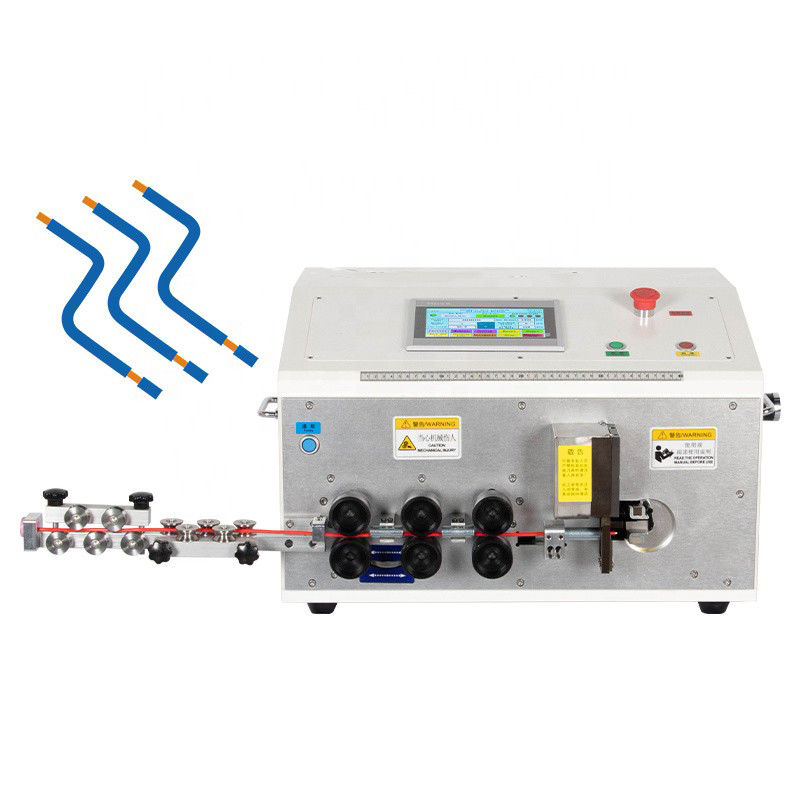

CX-08D Automatic Wire Cable Cut Strip Bending Machine Up To 5m

CX-08D Automatic Wire Cable Cut Strip Bending Machine Up To 5m

Product Details:

Place of Origin: China (Mainland)
Brand Name: CX
Model Number: CX-08D

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Packaging Details: Export Wooden Case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Usage: Strip And Bend Max. Conduit Diameter: 11mm
Wire Range: 0.1-25mm2 Stripping Length:: Head Stripping (0-30mm) Tail Stripping (0-20mm)
Power Supply:: 500W 220V/110V 50/60HZ Cutting Length: Up To 5m
Air Pressure: 0.4-0.6Mpa Weight: 45KG
High Light:

Sheathed Wires Strip Bending Machine

,

500W Strip Bending Machine

,

Electric Wire Stripping Machine 50HZ

Product Description

CX-08D Factory Price Automatic Wire Cable Cut Strip Bending Machine



Features:

  • This machine adopts 6-wheel drive, strong power and high precision. It is widely used in the processing of product power cables, sheathed wires, soft and hard wires.
  • The outlet wheel also has the function of automatic liting. The outlet wheel can atomaically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased.
  • The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer strpping program, which can be divided into three layers, or the longest strpping length Three times of peeling; 200 groups of program memory functions are provided, and the processing parameters of diferent wires can be stored in diferent program numbers.
  • It can be equipped with branching jigs, cutting jigs, and inkjet printers.



Technical Parameter

Model CX-08D
Wire range 4-35mm2
Stripping length Side I:0.1-35mm; Side II:0.1-30mm
Length accuracy ±(0.2*L)mm
Productivity 800-1500pcs/hour
Noise level <70dBA
Electrical connection AC 220/110V 50/60HZ 800W
Program save 200
Bending shape 0-150 degrees
Machine dimension 600*550*450mm
Weight 90kg
Number of bending sections 10
