Hard BVV Wire A Conductor Copper Cable Strip Bending Machine Small Diameter
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CX |
| Model Number: | CX-08B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Stripping Length: | Side I:0.1-35mm; Side II:0.1-30mm | Wire Range: | 1.5-16mm2 |
|---|---|---|---|
| Productivity: | 800-1500pcs/hour | Power Supply:: | 500W 220V/110V 50/60HZ |
| Air Pressure: | 0.4-0.6Mpa | Weight: | 65KG |
| High Light: | Hard BVV Strip Bending Machine,16mm2 Strip Bending Machine,1500pcs/h Electric Wire Stripping Machine |
||
Product Description

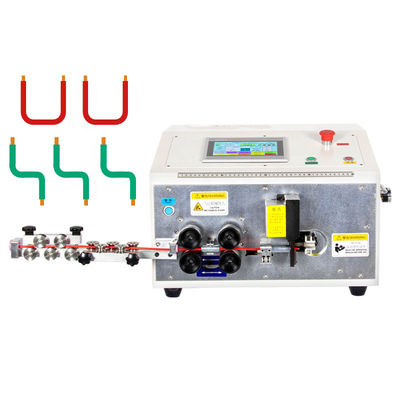

CX-08B Small Diameter Hard BVV Wire A Conductor Copper Cable Stripping And Bending Machine
Features:
LCD Screen with Programmable Setting 4-Wheel Driving
999 programs can bestoredDifferent Ensure the smooth cutting and stripping
modes and fast production setup for process.
different applications.
High Speed and Steady Blades Bending part.
Tungsten steel material is selected. Special design ensure 1-180°bending and
with no damage to cable.
999 programs can bestoredDifferent Ensure the smooth cutting and stripping
modes and fast production setup for process.
different applications.
High Speed and Steady Blades Bending part.
Tungsten steel material is selected. Special design ensure 1-180°bending and
with no damage to cable.
Technical Parameter
| Model | CX-08B |
| Wire range | 1.5-16mm2 |
| Stripping length | Side I:0.1-35mm; Side II:0.1-30mm |
| Length accuracy | ±(0.2*L)mm |
| Productivity | 800-1500pcs/hour |
| Noise level | <70dBA |
| Electrical connection | AC 220/110V 50/60HZ 600W |
| Program save | 999 |
| Bending shape | 0-180 degrees |
| Machine dimension | 530*470*340mm |
| Weight | 65kg |
| Number of bending sections |
10(Can be customized) |
