High Productivity Electric Wire Stripping Machine Cutting Bending Multifunctional
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CX |
| Model Number: | CX-08C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Cut Strip And Bend | Conductor Cross-section:: | 1-25mm2 |
|---|---|---|---|
| Power Supply: | AC220V/110V 50/60HZ 350W | Warranty: | 1 Year. 24hr Online Technical Guidance |
| Noise Level: | <70dBA | Bending Shape: | 0-180 Degrees |
| High Light: | Cable Cutting Stripping Machine 50Hz,Cable Cutting Stripping Machine AC220V,Multifunctional Electric Wire Stripping Machine |
||
Product Description

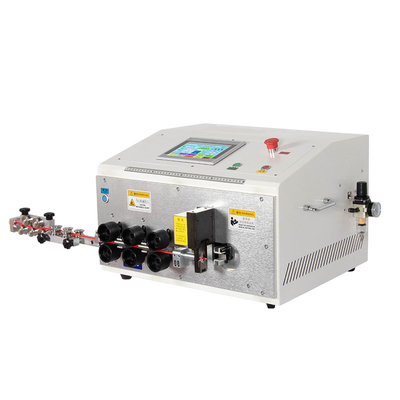

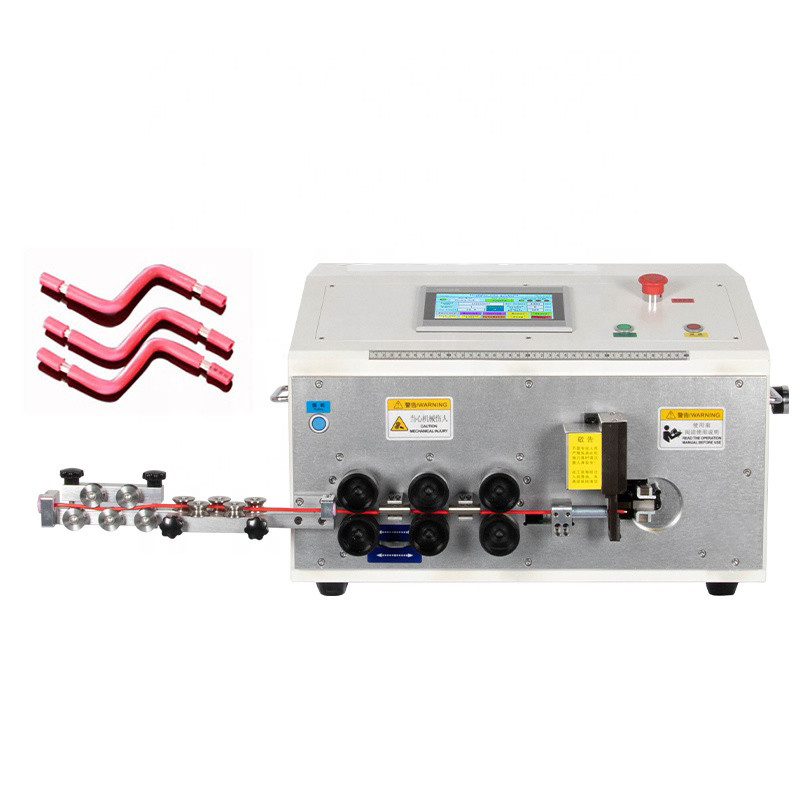

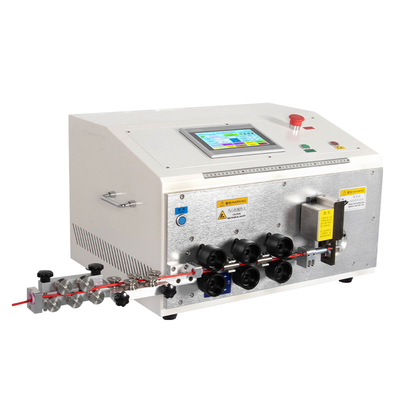

CX-08C High Productivity Multi-Functional Wire Cable Cutting Stripping Bending Machine
Description
This machine adopts 6-wheel drive, strong power and high precision. It is widely used in the processing of product power cables, sheathed wires, soft and hard wires.
The outlet wheel also has the function of automatic liting. The outlet wheel can atomaically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased.
The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer strpping program, which can be divided into three layers, or the longest strpping length Three times of peeling; 200 groups of program memory functions are provided, and the processing parameters of diferent wires can be stored in diferent program numbers.
It can be equipped with branching jigs, cutting jigs, and inkjet printers.
Technical Parameter
| Model | CX-08C |
| Wire range | 1.5-25mm2 |
| Stripping length | Side I:0.1-35mm; Side II:0.1-30mm |
| Length accuracy | ±(0.2%*L)mm |
| Productivity | 800-1500pcs/hour |
| Noise level | <70dBA |
| Electrical connection | AC 220/110V 50/60HZ 600W |
| Program save | 200 |

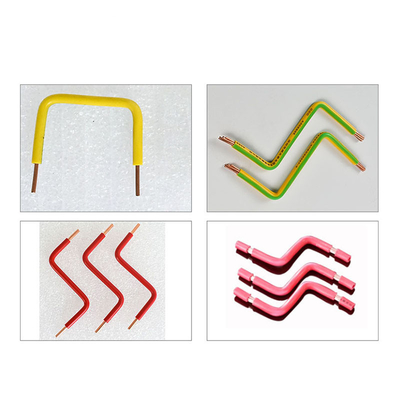

| Bending shape | 0-180 degrees |
| Machine dimension | 600*550*450mm |
| Weight | 80kg |
| Number of bending sections | 10 |
