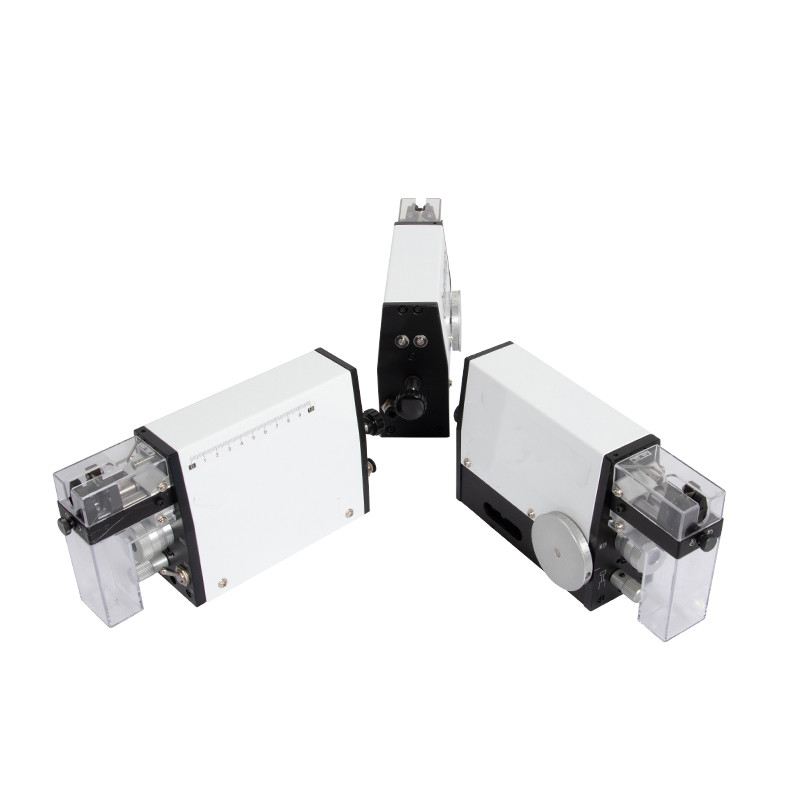

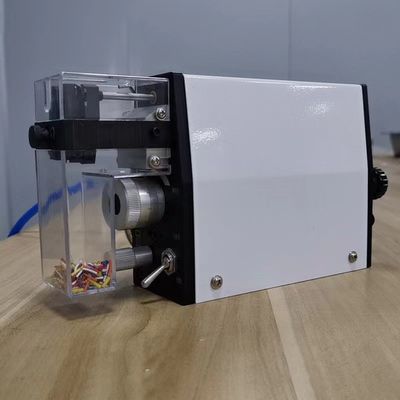

CX-GM001 Jacket Peeling Core Wire Stripping Machine Semi Automatic Sheathed Cable
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENCIN |
| Certification: | ISO9001 |
| Model Number: | CX-GM001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/boxes |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Wire Size Range: | 0.03 – 2.08 Mm2 (32 – 14 AWG) | Max. Outer Cable Diameter: | 3.2 Mm |
|---|---|---|---|
| Stripping Length Increments: | Full Strip: 0.5 Mm Partial Strip: 2 Mm | Cycle Time: | About 0.3s |
| Wire Material: | PVC, Teflon, Single Wire,single-core, Rubber | Precision Of Setting Diameter: | 0.01mm |
| High Light: | Teflon Wire Stripping Machine,3.2mm Wire Stripping Machine,Sheathed Cable Pneumatic Wire Stripper |
||
Product Description
CX-GM001 Hot Selling Jacket Peeling Core Wire Stripping Semi Automatic Sheathed Cable Pneumatic Stripper Machine
Description
1. It can work without power supply after connecting to the air source.
2. The sensor control does not require a foot switch to strip the head accurately.

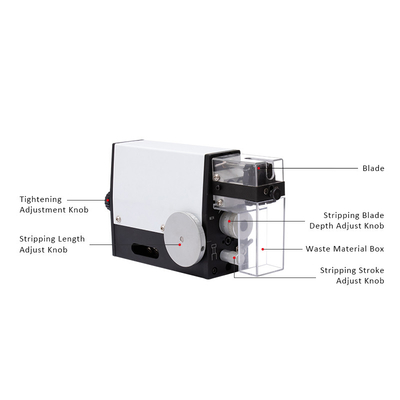

3. The stripping length, cutting depth, half stripping and full stripping are all adjusted by the scale knob without tool assistance. Simple and fast.

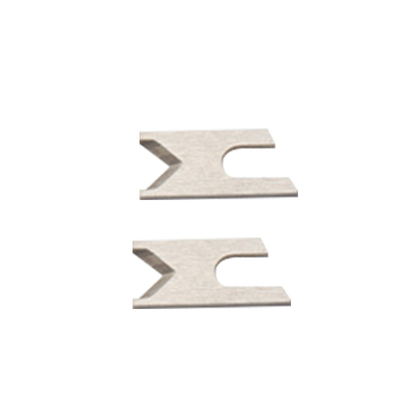

4. The 90-degree V-shaped knife edge design is extremely versatile, and it does not need to change the knife edge to process different wires.
5. Small size (3KG), easy to move, it can work normally where there is air source.
Technical Parameter
| Model | CX-GM001 |
| Wire Size Range | 0.03 – 2.08 mm2 (32 – 14 AWG) |
| Max. Outer Cable Diameter | 3.2 mm |
| Stripping Length Increments | Full strip: 0.5 mm Partial strip: 2 mm |
| Precision of Diameter Setting | 0.01 mm |
| Max. Strip Length | 20 mm |
| Cycle Time | approx. 0.3s |
| Dimensions (L x W x H) | 265 x 70 x 135 mm |
| Weight |
Net: 2.0 kg Gross: 2.4 kg |
