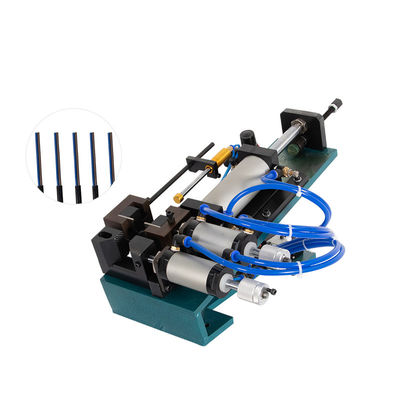

0-10MM Closed Circuit Cable Wire Stripper , CX-310 Pneumatic Wire Stripping Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | Export Carton with foam |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Strip | Stripping Length: | 100mm |
|---|---|---|---|
| Wire Dia.: | 0-10mm | Air Pressure: | 3-7kg/cm2 |
| Voltage: | 220V/110V/50HZ/60HZ | Force: | 49-115KG |
| Weight: | 25KG | Size: | L480*W330*H280mm |
| High Light: | 10MM Cable Wire Stripper,Pneumatic Cable Wire Stripper,110V Pneumatic Wire Stripping Machine |
||
Product Description

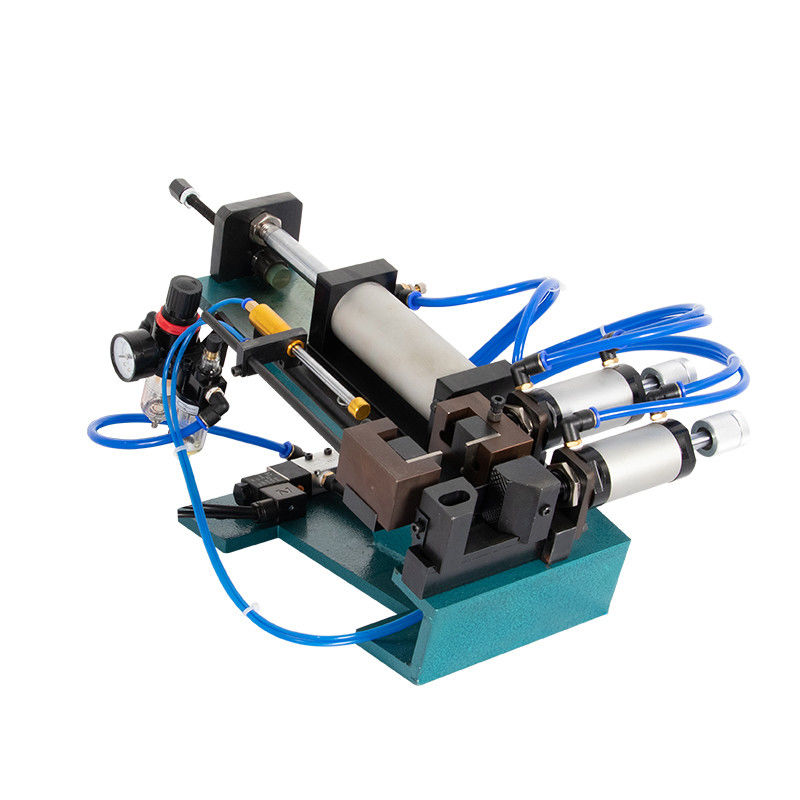

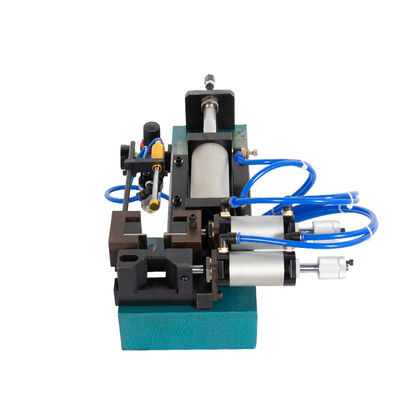

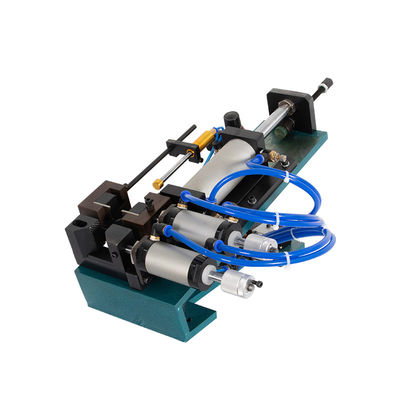

CX-310 0-10MM Cable Closed Circuit Wire Stripper Pneumatic Wire Stripping Machine
Descrption
1. Bevel design, according to somatology.Dual-driving cylinder, no spring breakage.
2. Self-feeding oil and supply. Timely oil supply to cylinder can decrease abrasion of interior cylinder and lengthen life.
3. Special sliding holder, balance stroke and high peeling precision. Electric control, easy operation.
4. Suitable for short cable with small diameter, such as AC/DC, power wire, computer cable, electronic cable and multi-core cable.
Feature
- Adjusting The Master Cylinder: Main cvlinder mainly used to adiust the stripping length, reciprocating double.
- Adjusting Cylinder: Cylinder for adjusting the distance of the blade and the fast distance of the intake, more rapid action. clamping line.
- Stripping Processing: Applicable to different size of wire, easy to operate and good stripping effect.
- Area Barometer: The record shows the air pressure value during processing, simple structure, small range and high accuracy.
Technical Parameter
| Model | CX-310 |
| Stripping length | 100mm |
| Wire Dia. | 0-10mm |
| Air Pressure | 3-7kg/cm2 |
| Voltage | 220V/110V/50HZ/60HZ |
| Force | 49-115KG |
| Weight | 25KG |
| Size |
L480*W330*H280mm |
