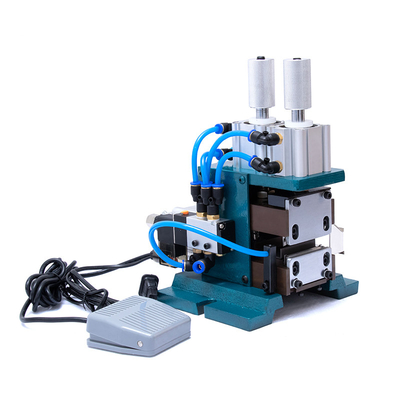

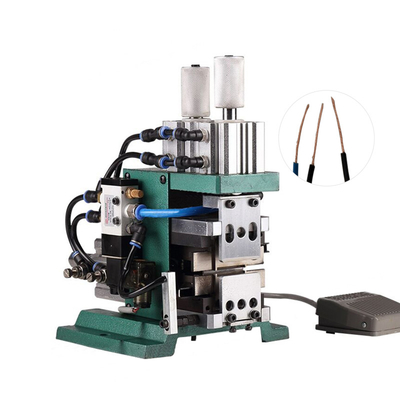

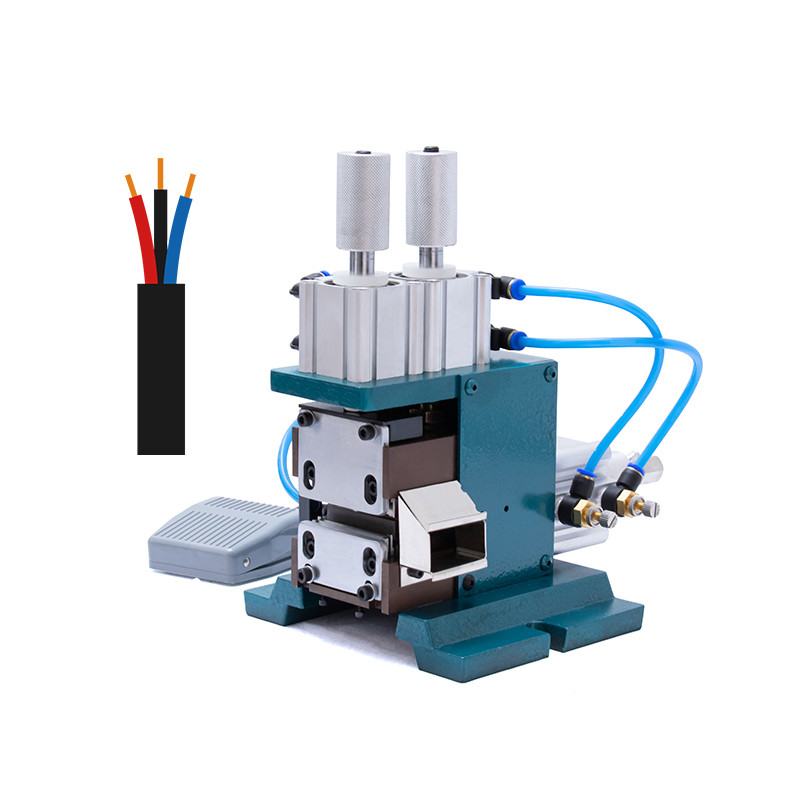

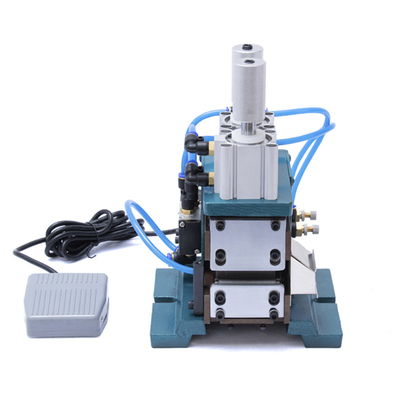

3F / 3FN / 4F / 4FN Automatic Wire Stripping Machine Pneumatic Peeling Multi Core
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-3F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | Export carton case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Strip | Max. Stripping Length: | 20mm |
|---|---|---|---|
| Air Pressure: | 3-7kg/cm2 | Voltage: | 220V/110V/50HZ/60HZ |
| Single Gross Weight: | 14.000 Kg | Single Package Size: | 38X28X33 Cm |
| High Light: | 3F Automatic Wire Stripping Machine,4FN Automatic Wire Stripping Machine,ISO90001 Cable Stripping Machine |
||
Product Description
3F/3FN/4F/4FN Automatic Wire Stripping Machine Pneumatic Peeling Machine Multi-Core Cable Stripping Machine
Descrption

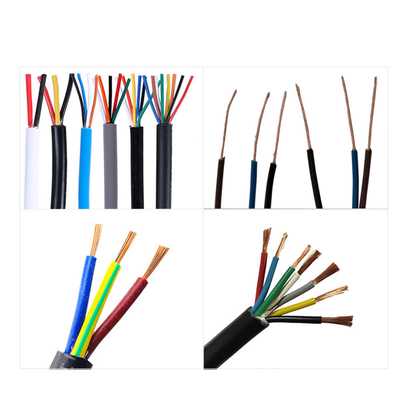

1 The machine is suitable for multiple wires stripping, sheathed cable core wires stripping.
2 Compact designing makes the aircraft structure is tight, compact, easy to operate.
3 Multiple functions are realized at the same time, which doubles the stripping efficiency and makes the quality more perfect.
Feature
- Easy Operation: This machine uses air pressure operation, and electromagnetic valve control.
- Imported Quality Blade: The knife and clip mount distance is short, make the wire material of computer wire or special short easily handle.
- Gas-electric wire stripping: Double-acting cylinder,no spring fracture;Strong power, more convenient to use.
Technical Parameter
| Model | CX-3F | CX-3FN |
| Electrical connection | AC 220/110V/50/60HZ | AC 220/110V/50/60HZ |
| Length accuracy | ±(0.002*L)mm | ±(0.002*L)mm |
| Max. stripping length | 20mm | 2-20mm |
| Machine dimension | 350×250×310mm | 350×230×350mm |
| Weight | 12kg | 15kg |
| Twist length | 5.0-25mm | |
| Twisting | 1-6 piece one time AWG16-22 | |
| Peel and twist speed |
120-30 time / minute |
