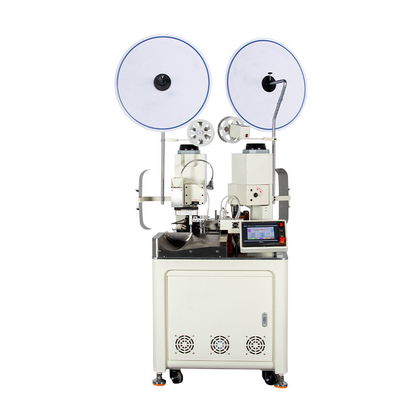

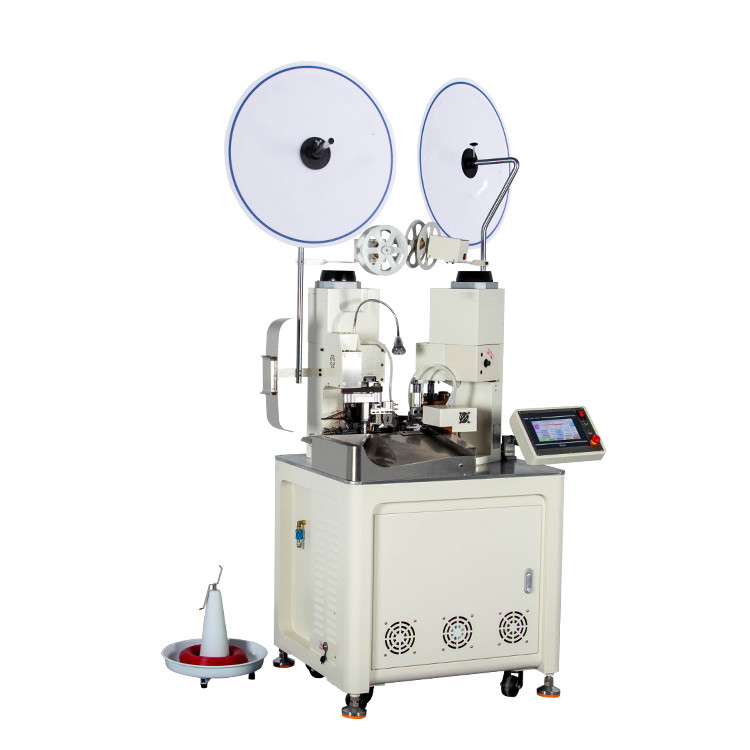

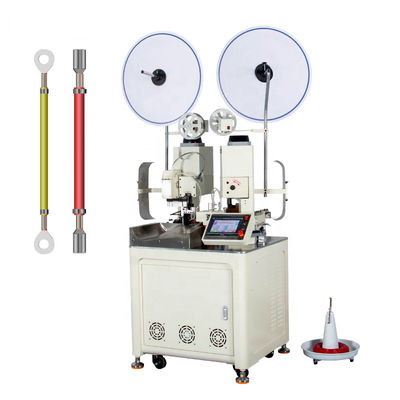

CX-801 Double Side Terminal Wire Stripping And Crimping Machine Fully Automatic
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-801 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | Export wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Usage: | Cut & Strip & Crimp | Applicable Cable: | AWG28-AWG12 |
|---|---|---|---|
| Stripping Length: | 0-10mm | Cutting Length: | 45-9999mm |
| Cut Precision: | ±(0.5+0.002*L) Mm, L=cut Length | Capacity: | 3000-4500pcs/hour |
| Applicators: | 30mm Or 40mm Strokes For Optional | Crimping Force: | 2.0T |
| High Light: | LCD Stripping And Crimping Machine,40mm Terminal Crimping Machine,30mm Terminal Crimping Machine |
||
Product Description

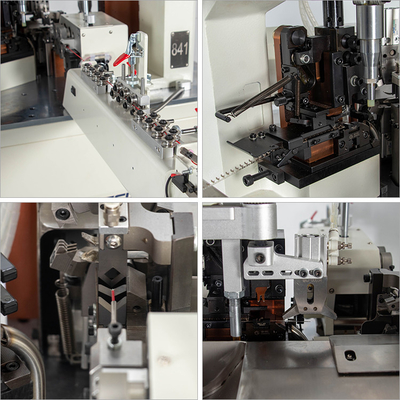

CX-801 Fully Automatic Double Side Terminal Wire Stripping Crimping Machine Terminal Crimping Machine
Description

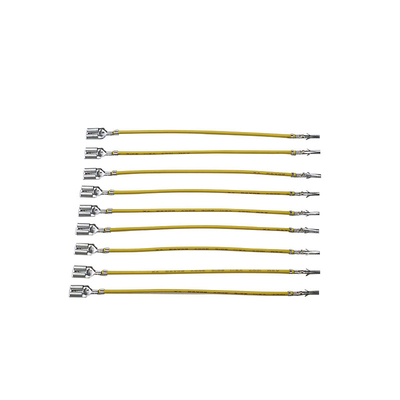

1. Automatic double-end wire cutting, stripping, crimping, stripping, cutting machine and terminal functions in one, high
precision, fast speed and stable performance.
2. LCD, Chinese interface, HD, easy to operate
3. This machine adopts servo control, which is fast and low in noise.
4. The computer touches the digital tuning parameters, which is quick and easy.
5. After the test is completed, the machine automatically alarms when the wire, crimp, pressure, etc.
6. Innovative concept, OTP mode, horizontal mode, just replace the blade, automatic receiving terminal, waste paper, abandoned terminal.
Technical Parameter
| Model | CX-801 |
| Applicable wire range | AWG28-AWG12 |
| Stripping length | 0-10mm |
| Cut precision | ±(0.5+0.002*L) mm, L=cut length |
| Cutting length | 45-9999mm |
| Capacity | 3000-4500pcs/hour |
| Crimping force | 2.0T |
| Applicators | 30mm or 40mm strokes for optional |
| Air pressure | 0.4-0.6Mpa |
| Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
| Power | 220V/110V/50/60HZ |
| Display language | Chinese/English |
| Dimension | 700*800*1500mm |
| Weight | 358Kg |
| Power cord plug |
European, USA, Chinese plug |
