CX-303 Semi Automatic Rubberized Fabric / Tape Wrapping Machine And Winding
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENXIN |
| Certification: | ISO-9001 |
| Model Number: | CX-303 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Carton packages 430x380x260mm |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Wire Diameter: | 03mm-25mm | Winding Length: | Infinite Length |
|---|---|---|---|
| Adhesive Tape: | PVC, Vinyl, Cloth, Felt, Tape, Etc | The Inner Hole: | 038,032 (optional) |
| Tape Width: | 9-25mm | Outer Diameter Of Adhesive Tape: | Max 140mm |
| High Light: | Semi Automatic Tape Winding Machine,Rubberized Fabric Tape Winding Machine,140mm Tape Wrapping Machine |
||
Product Description

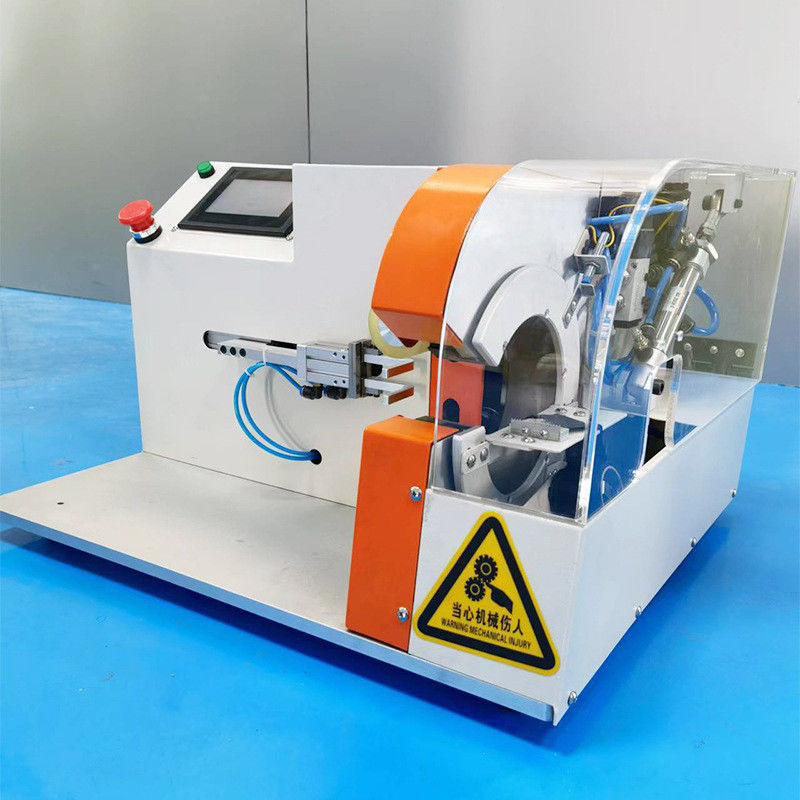

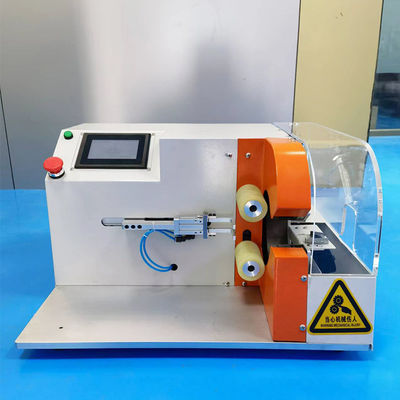

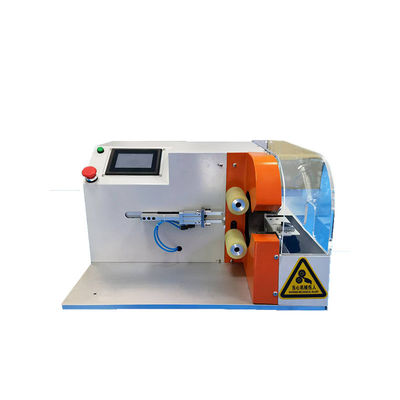

CX-303 Semi Automatic Rubberized Fabric /Tape Winding & Wrapping Machine
Feature Description:
This machine is suitable for tape winding of automobile harness, electronic wire harness, etc. Stick the adhesive tape head manually and move the control pedal by foot.
Point winding and direct winding can be carried out as required, the stop can be controlled at any time, and the wire position can be moved manually to reach the finalwinding length.
Technical Parameter:
| Model | CX-303 Semi Automatic Tape Winding Machine |
| Wire diameter | 03mm-25mm |
| Winding length | Infinite length |
| Adhesive tape | PVC, vinyl, cloth, felt, tape, etc |
| The inner hole | 038,032 (optional) |
| Tape Width | 9-25mm |
| Outer diameter of adhesive tape | Max 140mm |
| Power Supply | AC220V 50/60HZ |
| Function | Suitable for tape winding of short distance harness |
| Machine size | 430x380x260mm |
| Weight | 27KG |
