Cable Wire Stripping And Crimping Machine CX-2000A Power Cord Making 3 / 4 Cores
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Model Number: | CX-2000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Capacity: | 700-1,000pcs/hr(1 Step 3.5/sec) | Applicable Wire: | 0.5-1.0sqmm Are Universal, 1.5-2.5sqmm Are Universal |
|---|---|---|---|
| Air Pressure: | 0.5-0.8Mpa | Voltage&Frequency: | AC 220V/380V 50Hz |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Dimension: | L 1,620mm * W 1,200mm* H 1,400mm (floor Space) |
| High Light: | Crimping Power Cord Making Machine,0.8Mpa Stripping And Crimping Machine,Stripping Power Cord Making Machine |
||
Product Description

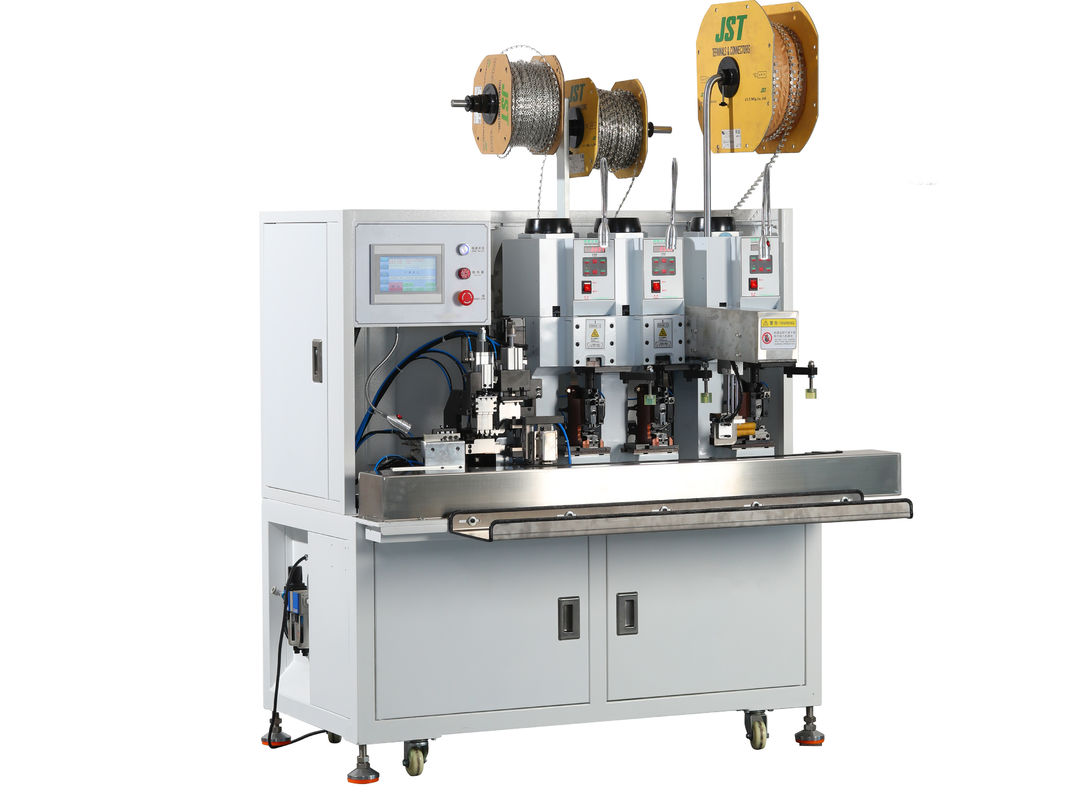

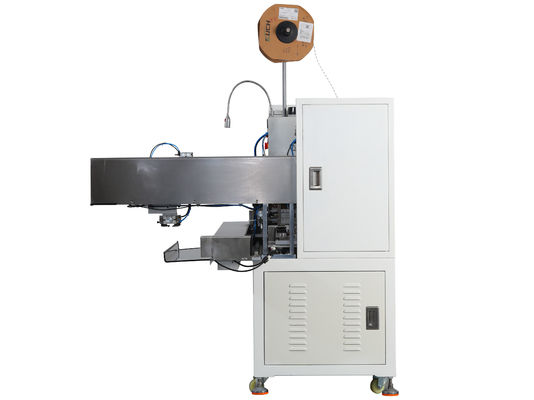

CX-2000A 3/4 Cores Cable Stripping Cutting Crimping Machine
Function
1. The wire is threaded into the designated hole, the core wire is drawn to different lengths, the core wire is cut and stripped, crimping 1, crimping 2, crimping 3, the manipulator takes out the wire.
2. The finished product can be produced as shown in the picture on the right.
Types of terminals that can be crimped: 3 types of terminals can be selected for crimping at the same time, 250 terminals, ground ring, 187 terminals, flag-type terminal and other terminals can be selected at will.
Technical Parameter
| Voltage & Frequency | AC220V / 50Hz |
| Air pressure | 0.6-0.7Mpa |
| Capacity | 700-1,000pcs/hr(1 step 3.5/sec) |
| Applicable wire | 0.5-1.0sqmm are universal, 1.5-2.5sqmm are universal |
| The number of people can be saved | 3-4 worker |
| Dimension | L 1,620mm * W 1,200mm* H 1,400mm (floor space) |
| Weight | 560kg |
| Applicable terminal | 1 or 3 types of terminal optional |
| Cutting in different length tolerance | 0-260mm adjustable |
Configuration List
| Name | Brand |
| Servo | LEADSHINE |
| PLC | XINJE |
| Stepper motor | LEADSHINE |
| Camera | Basler/Hikvision |
| proximity switch | Taiwan |
| Low voltage electrical appliances | CHINT/YIJIA |
| The electromagnetic valve | Airtac/ EMC |
| cylinder | Aitac |
| floating join | Airtac |
| Linear Guides | Hi-win/CCT |
| bearing | HCH |
| screw | CCT |
| Support seat | CCT |

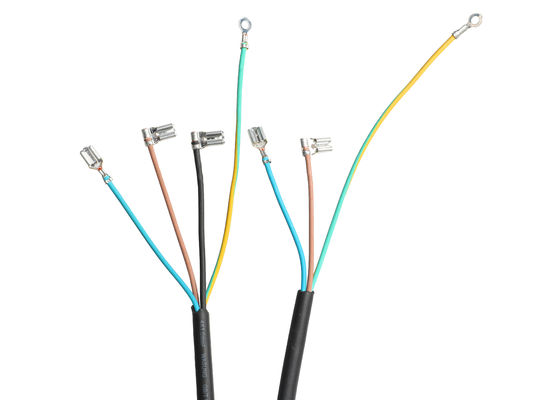

Power Cord Making 3/4 Cores Cable Wire Stripping Crimping Machine Finished Product:
