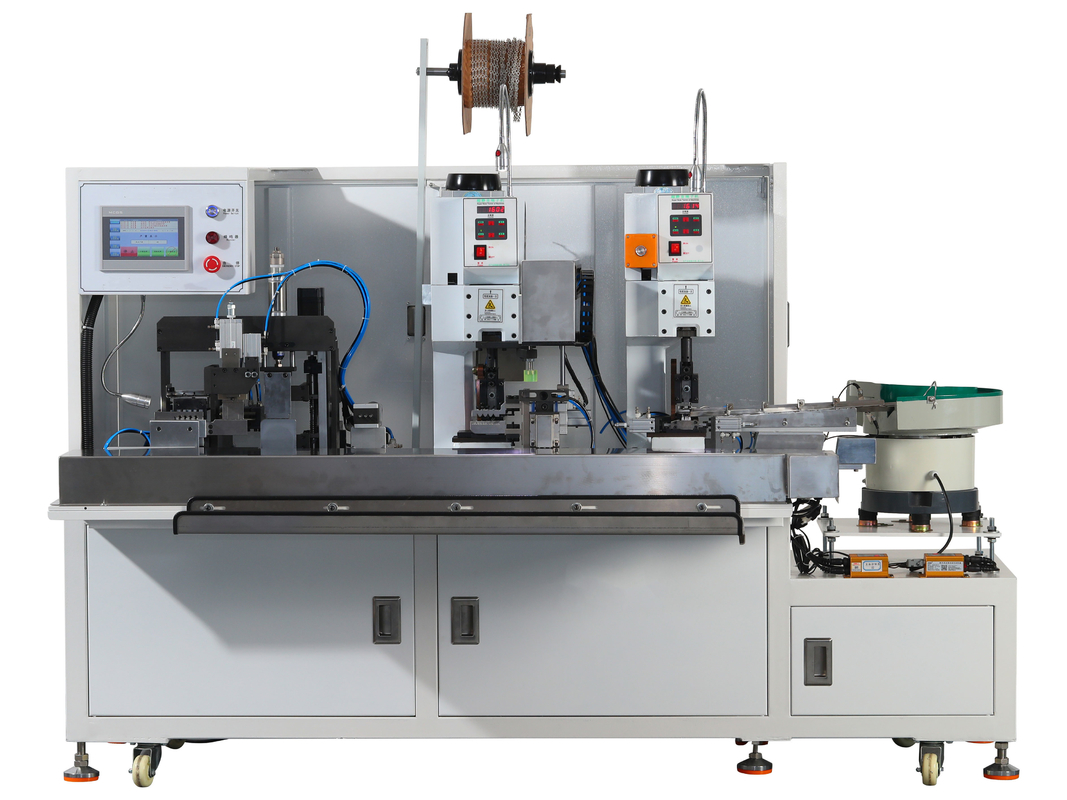

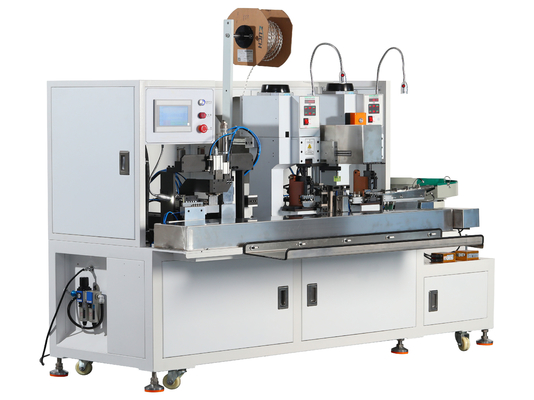

3 / 4 Cores Cable Industrial Loose Terminal Crimping Machine CX-2000B
Product Details:
Place of Origin: | CHINA |
Brand Name: | CHENXIN |
Model Number: | CX-2000B |
Payment & Shipping Terms:
Minimum Order Quantity: | 1/Set |
---|---|
Price: | Fob Shenzhen |
Packaging Details: | wooden case |
Delivery Time: | 15-20 working days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Capacity: | 700-1,000pcs/hr(1 Step 3.5/sec) | Applicable Wire: | 0.5-1.0sqmm Are Universal, 1.5-2.5sqmm Are Universal |
---|---|---|---|
Air Pressure: | 0.5-0.8Mpa | Voltage&Frequency: | AC 220V/380V 50Hz |
Warranty: | 1 Year. 24hr Online Technical Guidance | Dimension: | L 2,100mm * W 1,200mm* H 1,400mm (floor Space) |
High Light: | Terminal Crimping Machine 0.8Mpa,Industrial Loose Terminal Crimping Machine,AC380V Power Cord Making Machine |
Product Description
CX-2000 3/4 Cores Cable Industrial Loose Terminal Crimping Machine
Function
1, The stripped core wire is threaded into the designated hole, the core wire is pulled to different lengths, the core wire is cut and stripped, crimping 1, crimping 2, loose terminals are automatically fed and crimped, and the manipulator takes out the wire.
2, Terminal type: You can choose 2 types of terminal crimping at the same time, a combination of direct-feeding terminals and loose terminals, or single-use loose terminals.
Technical Parameter
Voltage & Frequency | AC220V / 50Hz |
Air pressure | 0.6-0.7Mpa |
Capacity | 500-650pcs/hr(1 step 5/sec) |
Applicable wire | 0.5-1.5sqmm |
The number of people can be saved | 4-5 worker |
Dimension | L 2,100mm * W 1,200mm* H 1,400mm (floor space) |
Weight | 650kg |
Applicable terminal | 1 or 2 types of terminal, button optional |
Cutting in different length tolerance | 0-260mm adjustable |
Crimping force | 3T |
Configuration List
Name | Brand |
Servo | LEADSHINE |
PLC | XINJE |
Stepper motor | LEADSHINE |
Camera | Basler/Hikvision |
proximity switch | Taiwan |
Low voltage electrical appliances | CHINT/YIJIA |
The electromagnetic valve | Airtac/ EMC |
cylinder | Aitac |
floating join | Airtac |
Linear Guides | Hi-win/CCT |
bearing | HCH |
screw | CCT |
Support seat | CCT |

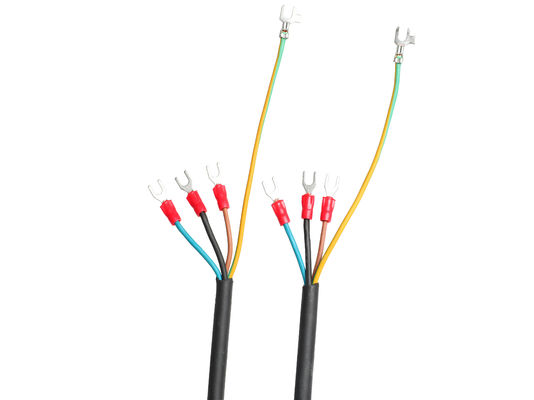

3/4 Cores Cable Industrial Loose Terminal Crimping Machine Finished Product
