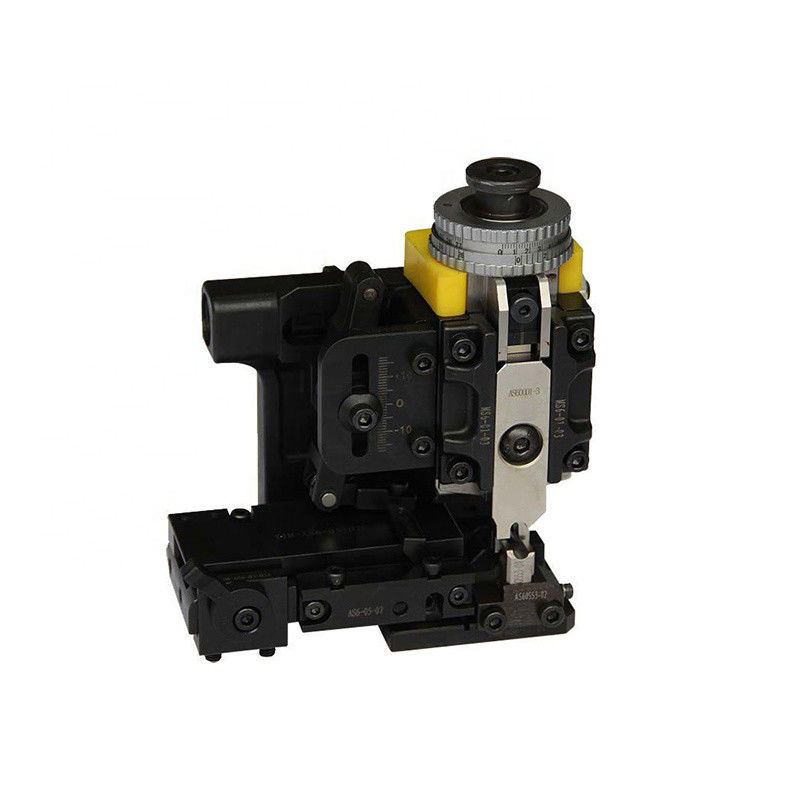

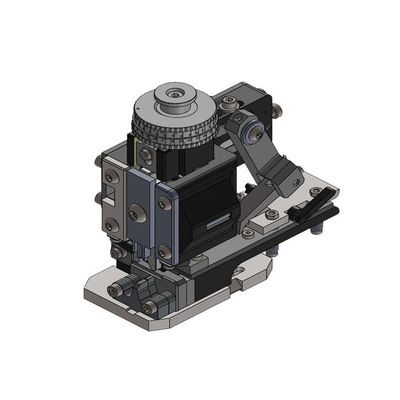

Mechanical Horizontal Lateral Feeding Terminal Crimping Applicator 40mm Stroke
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-M09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | EXW, FOB, CIF,C&F |
| Packaging Details: | Export wooden case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Crimp | Feed Type: | Mechanical |
|---|---|---|---|
| Cross Section Range: | 0.08 - 10 Mm² (28 - 7 AWG) | Crimp Height Adjustment: | Increment: 0.025 Mm Max.: 2.0 Mm |
| Terminal Pitch Range: | Min.: 1 Mm (0.04") Max.: 28 Mm (1.10") | Stroke: | 40mm |
| Warranty: | 1 Year | N.W: | 4kg |
| Terminal Thickness: | < 1,2mm (<0,047")) | ||
| High Light: | Mechanical Terminal Crimping Applicator,Lateral Feeding Terminal Crimping Applicator,40mm Stroke Terminal Crimping Applicator |
||
Product Description

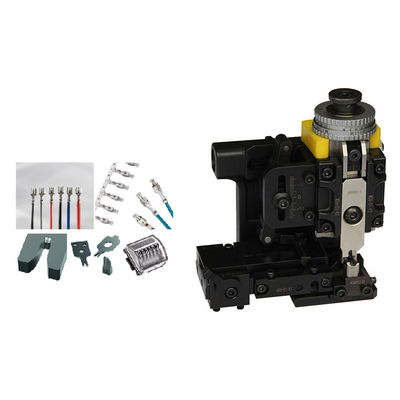

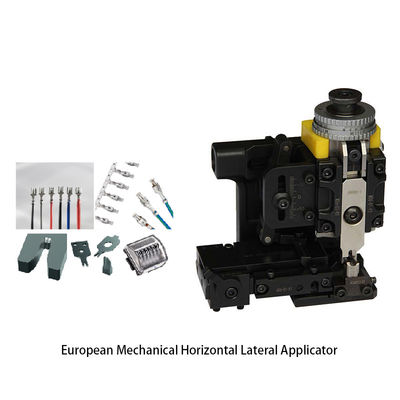

40mm Stroke European Mechanical Horizontal Lateral Feeding Terminal Crimping Machine Applicator
Description
- Forinked terminals. with thickness<1.2mm.. terminapitch>27mm.
- Mechanical Side feed or Rear feed.
- Wire section between 0 and 10mm.
- Feeding system forlinked terminals on a reel to be unrolled left to right
- Canbesupplied either with a continuous or a four-pad regulating head.
- Non-resettable 7-digit cycle counter.

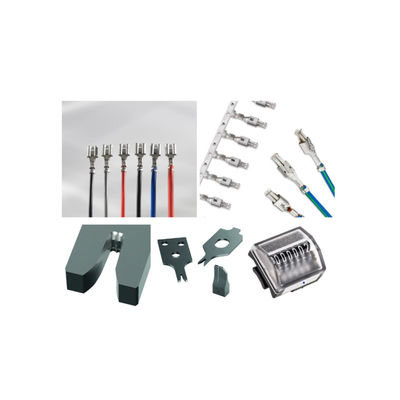

- Easy replacement of crimpers and anvils.
- Can be used in both manualand automatic configuration
Technical Parameter
| Model | CX-M09 |
| Feed type | Mechanical |
| Press stroke | 40 mm |
| Cross section range | 0.08 - 10 mm² (28 - 7 AWG) |
| Crimp height adjustment |
Increment: 0.025 mm Max.: 2.0 mm |
| Terminal pitch range | Min.: 1 mm (0.04") Max.: 28 mm (1.10") |
| Terminal thickness | < 1,2mm (<0,047")) |
| Weight | 3.9kg (8,6 lbs.) |
| Base design |
3-point base clamp with male T-shaped ram adapter |
