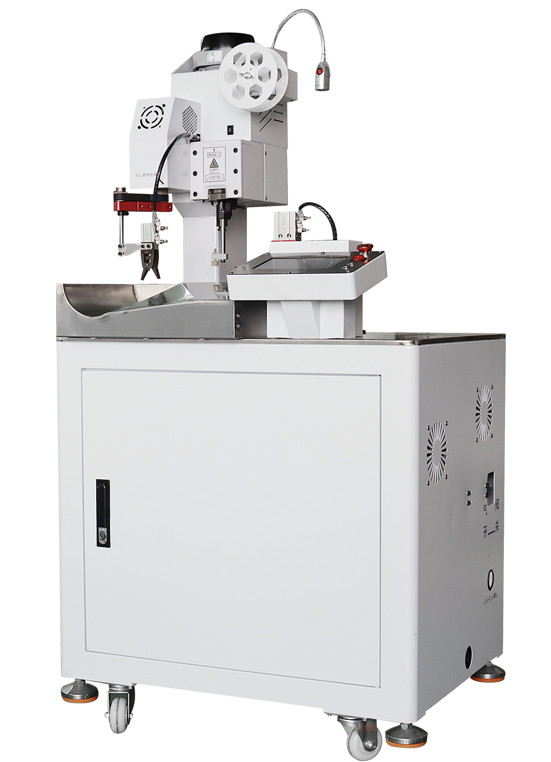

CX-A01W Fully Automatic Single-Head Terminal Crimping Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-A01W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | Export wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Usage: | Cut & Strip & Crimp | Applicable Cable: | AWG32-AWG18 |
|---|---|---|---|
| Stripping Length: | 1-10mm | Cut Precision: | ±(0.2+0.02*L) Mm, L=cut Length |
| Capacity: | 3800-5000pcs/hour | Crimping Force: | 2.0T |
| Applicators: | 30mm Or 40mm Strokes For Optional | Detection: | Wire Run Out, Low Air Pressure, Terminate Error(Crimping Force Monitor Is For Optional) |
Product Description
CX-A01W Fully Automatic Single-Head Terminal Crimping Machine
Features:
1. One device can complete wire cutting, stripping, and terminal crimping.
2. Precise action, simple operation, stable performance, suitable for horizontal and vertical OTP molds
3. The crimping roller tightness and cutter depth can be adjusted on the touch screen of the machine.
4. The whole stripping length is directly set by the Chinese menu panel of the touch screen, and the best features are: fast adjustment of technical performance, short adjustment time, and easy operation.
Specifications:
| Model | CX-A01W |
| Dimension | 700*600*1500mm |
| Weight | 260KG |
| Voltage | 220V/50HZ/60HZ(110V optional) |
| Air pressure | 0.6-0.8MPA,dry, clean |
| Cutting length | 45-9999mm |
| Cutting accuracy | 0.002*L |
| Stripping length | 10mm(A side),8mm(B side) |
| Capacity | 3500pcs/hr(100mm,one side crimping) |
| Crimping force | 2.0T(3.0T optional) |
| Applicable wire | 0.1-2.5mm² |
| Self-test capability |
Presence or absence of wires/Knotted wires/Presence or absence of terminals Take-up detection/barometric pressure detection |
|
Warranty |
1year(There is no warranty for consumables and man-made damage) |
