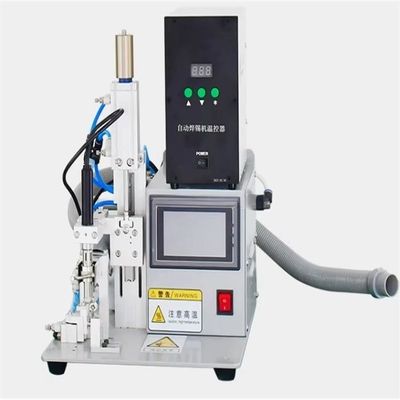

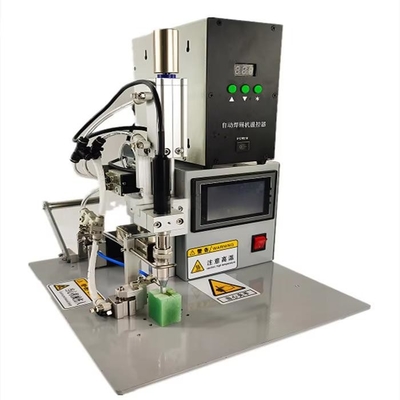

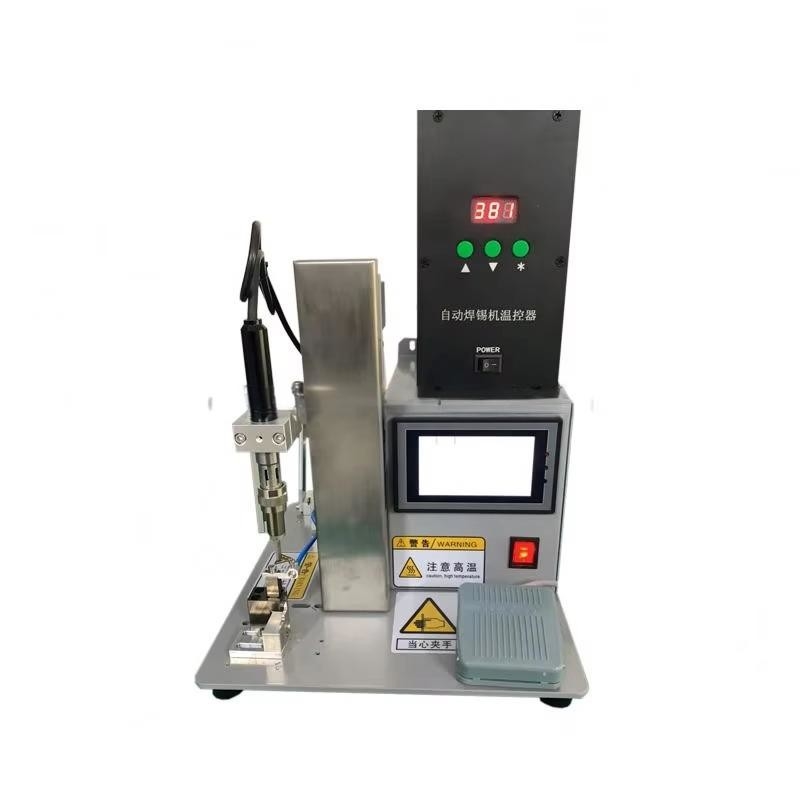

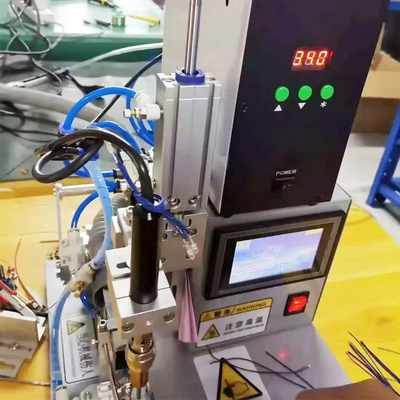

Multi Core Cable USB 4.0 Connector Soldering Machine Automatic
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Certification: | ISO9001 |
| Model Number: | CX-DG531 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case/ carton |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model Of Machine: | CX-DG531 | Power Source: | DIRECT CURRENT 15V/3A |
|---|---|---|---|
| Air Pressure: | 0.2-0.6Mpa(clean And Dry Air Is Required) | Temperature: | 0-50℃ No Wind, No Dust |
| Function: | Soldering | Automation: | Semi Automatic |
| Highlight: | USB 4.0 Connector Soldering Machine,Multi-Core Cable Connector Soldering Machine,Automatic usb connector soldering machine |
||
Product Description
Multi-Core Cable USB 4.0 Connector Automatic Soldering Machine
Harness Automatic Connector Soldering Machine Advantages
- Reduces Labor Dependency – Lowers manual operation intensity and minimizes specialized skill requirements.
- Ensures Precision & Consistency – Delivers uniform solder joints to elevate product quality and reliability.
- Streamlines Production Management – Enhances workflow efficiency and boosts enterprise competitiveness.
Key Features of Harness Automatic Connector Soldering Machine
- Intelligent Automation Control – PLC-driven system with user-friendly touchscreen interface for simplified operation.
- High-Speed Soldering Capability – Processes multiple solder points simultaneously, significantly improving throughput.
- Adaptable Configuration – Adjustable soldering parameters (time/volume) and modular fixtures for rapid across product variants.
- Solder-Free Technology – Eliminates consumables, enabling immediate operation even for untrained personnel.
- Broad Application Scope – Compatible with USB connectors, PCBs, LED modules, switches, sensors, and other microelectronic components.
Technical Parameter
|
Brand Name
|
CX |
|
Model Number
|
CX-DG531
|
|
Usage
|
Soldering
|
|
Machine warranty
|
1 year
|
|
Drive mode
|
Motor / pneumatic
|
|
Voltage
|
AC220V
|
|
Heating power
|
200W
|
|
Air source
|
Motor driven no need air, pneumatic needed 0.4-0.8Mpa
|
|
Temperature range
|
50-450℃
|
|
Temperature Accuracy
|
+/-2℃
|
|
Net Weight
|
16kg
|
|
Size
|
350*350*500mm
|
|
Soldering time and tin feeder
|
Adjustable
|
Feature
1.Adopt a special surface treatment, nice design.
2.New lean design, greater effective stroke of the same dimensions.
3.Suitable usb connector, pcb board, lamp board, electronic component, switch, motor, squint. Transistors, led lights, connectors, etc.
4.No need for welders, novices can work proficiently
5.Strong versatility, the soldering time and the amount of tin can be adjusted, and different fixtures can be replaced to weld different products
6.Fast welding speed, can weld multiple welding points at once
7.PLC+ touch screen design is easy to operate
USB A male, USB A female, micro USB, MINI USB, DC terminal, iphone,Type-c connector,etc
Semi automatic USB/type-c soldering machine
→Different machine models are suitable for different connector
→Please send us a sample of the semi-finished or finished wire harness and we will supply or customize a suitable machine for you.
→All kind of soldering connector can be customized, just need
