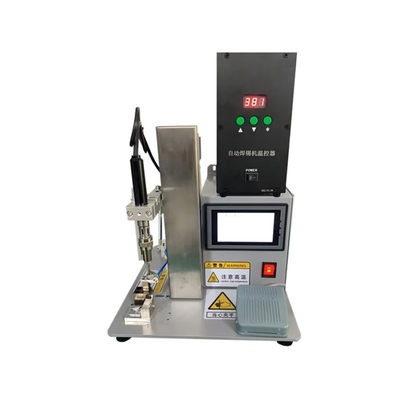

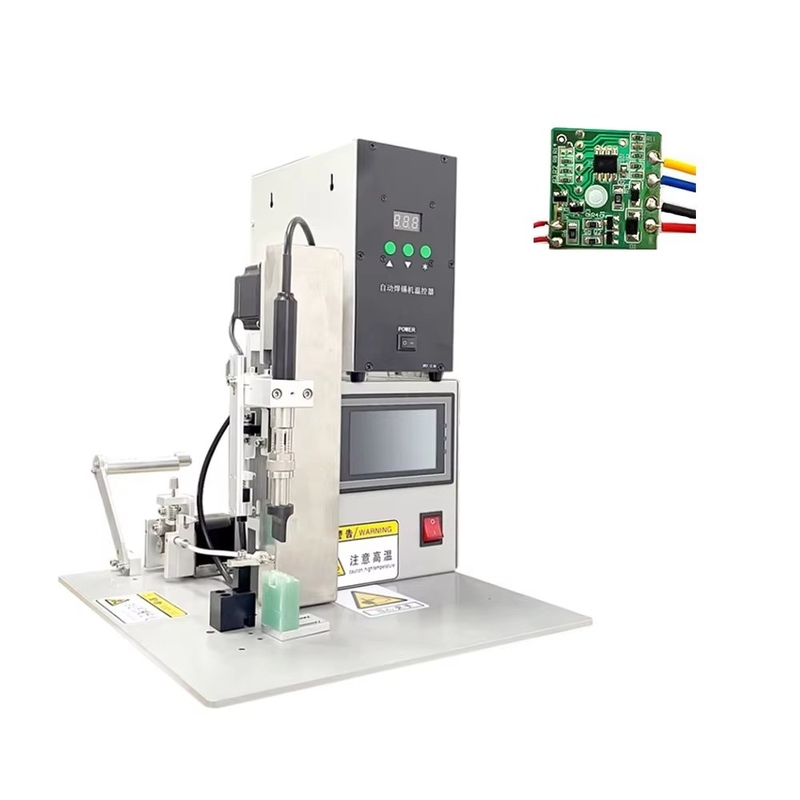

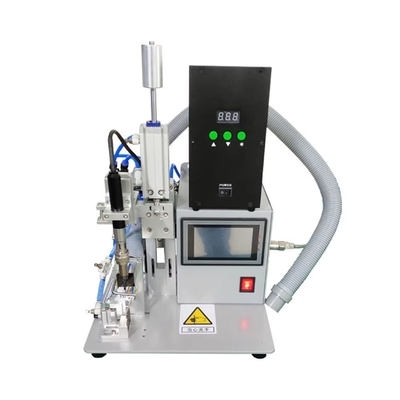

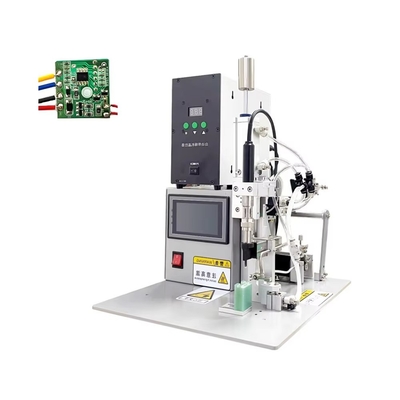

Multifunctional Electric Wire Welding Machine With Earphone Pin High-Low Welding PCB Board Soldering For Cable Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Certification: | ISO9001 |
| Model Number: | CX-DG531 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case/ carton |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Model Of Machine: | CX-DG531 | Power Source: | DIRECT CURRENT 15V/3A |
|---|---|---|---|
| Air Pressure: | 0.2-0.6Mpa(clean And Dry Air Is Required) | Temperature: | 0-50℃ No Wind, No Dust |
| Function: | Soldering | Automation: | Semi Automatic |
| Highlight: | Earphone Pin Electric Wire Welding Machine,PCB Board Electric Wire Welding Machine,Multifunctional Electric Wire Welding Machine |
||
Product Description
Multifunctional Electric Wire Welding Machine with Earphone Pin High-Low Welding PCB Board Soldering for Cable Manufacturing
Description
Advantages of the Harness Automatic Connector solder machine:
1. Reduce employee labor intensity and professional requirements
2. Enhance product consistency and quality
3. Easy to manage and provide company competitiveness
Harness Automatic Connector solder machine Features
1,PLC+ touch screen design simple operation
2,Quick soldering speed, can weld more than one welding spot
3,Strong versatility, tin time and tin amount can be adjusted, just change the fixed fixture, can weld different products;
4,No need for solder, novice can also be skilled.
5,Widely used in various USB connector, PCB board, lamp board, electronic components, switch, motor, microphone,
audion, LED lamp, connector and other products welding line.
Technical Parameter
Technical Index | Tech-Parameters | |
Drive Model | Pneumatic or Electric drive | |
Input Voltage | AC220V | |
Power | 280W | |
Temperature Accuracy | ±2℃ | |
Temperature | 50-600℃ | |
Air pressure | 0.4～0.8MPa, clean and dry | |
weight | 15kg | |
Size | (W*D*H)410*400*450MM | |
Screen | Touch Screen | |
System | PLC | |
Soldering Point | Multiple welding Point | |
Soldering Time | Adjustable | |
Tin Feeder | Adjustable | |
Feature
1.Adopt a special surface treatment, nice design.
2.New lean design, greater effective stroke of the same dimensions.
3.Suitable usb connector, pcb board, lamp board, electronic component, switch, motor, squint. Transistors, led lights, connectors, etc.
4.No need for welders, novices can work proficiently
5.Strong versatility, the soldering time and the amount of tin can be adjusted, and different fixtures can be replaced to weld different products
6.Fast welding speed, can weld multiple welding points at once
7.PLC+ touch screen design is easy to operate

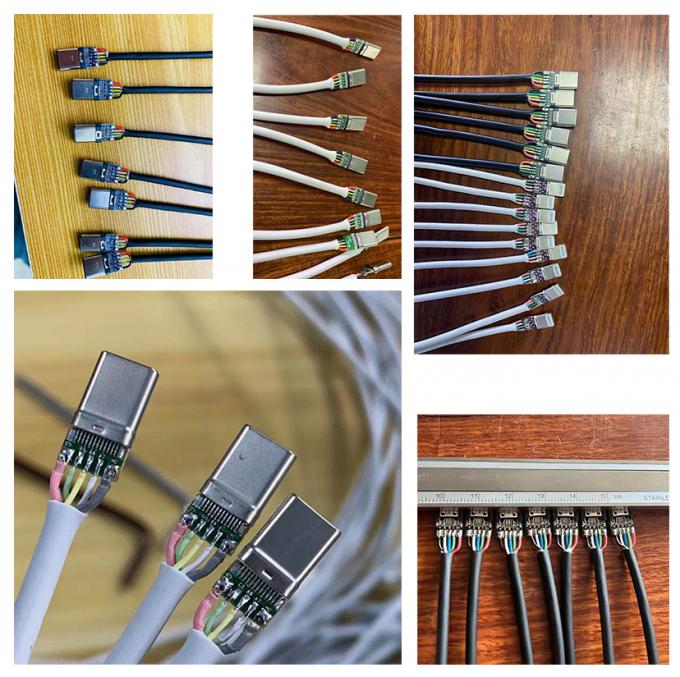

USB A male, USB A female, micro USB, MINI USB, DC terminal, iphone,Type-c connector,etc

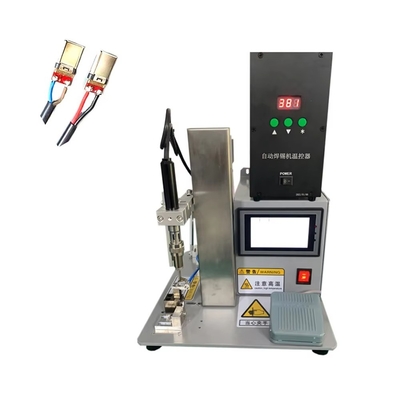

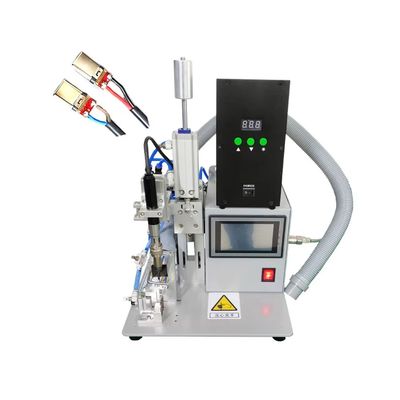

Semi automatic USB/type-c soldering machine
→Different machine models are suitable for different connector
→Please send us a sample of the semi-finished or finished wire harness and we will supply or customize a suitable machine for you.
→All kind of soldering connector can be customized, just need
