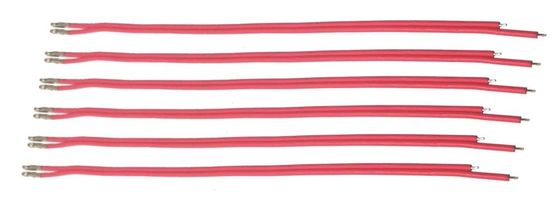

Single End Crimping Twisting Tinning Machine AWG24-AWG18 Wire
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-02C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Cutting Length: | 10mm-600mm | Adaptable Wire: | AWG#24-AWG#18、AWG#24-AWG#32 |
|---|---|---|---|
| Adaptable Terminal: | 0.8/1.0/1.25/1.5/2.0/2.54 Horizontal, Straight Mold | Capacity: | 6,000pcs-12,000pcs/hr |
| Stripping Length: | 0-7mm | Cutting Accuracy: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5-0.7Mpa(5-7kg/m³) | Twisting Length: | 3-7mm |
| Tinning Length: | 0.5-7mm | ||
| High Light: | AWG18 Crimping Twisting Tinning Machine,AWG24 Crimping Twisting Tinning Machine,600mm Single End Tinning Machine |
||
Product Description

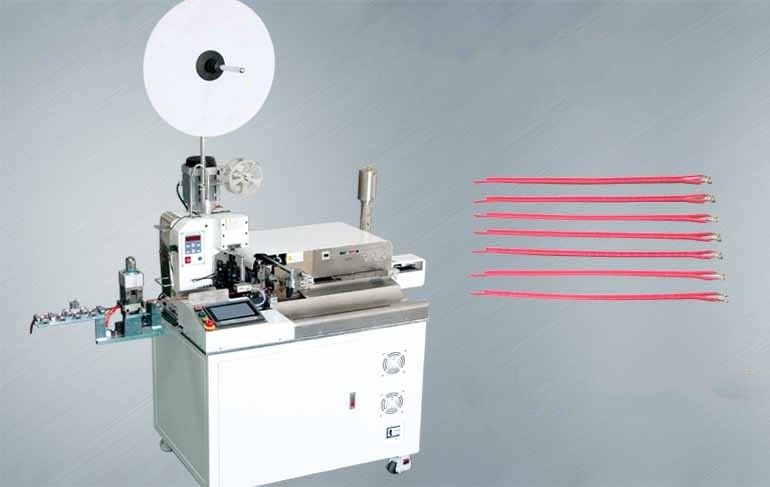

CX-02C Full Automatic Parallel Wire Cable Single End Crimping Twisting Tinning Machine
Features
1. Fully automatic parallel wire terminal crimping soldering tin machine, the equipment mainly adopts imported original parts, which can complete multiple functions such as cutting, stripping, terminal crimping, etc., with precise, efficient, and stable performance.
2. The parallel wire dip tin machine is controlled by the computer to adjust the tension of the crimping roller and the depth of the cutting knife, which is simple, convenient and fast.
3. The whole stripping length of the parallel wire terminal crimping machine and the crimping depth are directly set by the touch screen.
4. The best features of the parallel terminal crimping machine are: high technical performance, fast speed, short adjustment time and easy operation.
Technical Parameter
| Voltage | 50/60Hz 220V single phase |
| Cutting Length | 10mm-600mm |
| Applicable cable | AWG#24-AWG#18,AWG#24-AWG#32 |
| Capacity |
6,000pcs-12,000pcs/hr |
| Stripping Length | 0-7mm |
| Twisting length | 3-7mm |
| Tinning length | 0.5-7mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 1,210*770*1,370mm |
| Weight | about 450kg |
