OEM AWG28-AWG22 Automatic Wire Tinning Machine Single End Parallel Cable
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-02D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Cutting Length: | 50mm-600mm | Adaptable Wire: | 3-12P AWG#28-AWG#22 |
|---|---|---|---|
| Capacity: | 10P 1,000pcs | Stripping Length: | 0-7mm |
| Cutting Accuracy: | ±(0.2%*L+1)mm | Air Pressure: | 0.5-0.7Mpa(5-7kg/m³) |
| Crimping Force: | 2T | ||
| High Light: | AWG22 Automatic Wire Tinning Machine,AWG28 automatic wire tinning machine,OEM Single End Tinning Machine |
||
Product Description
CX-02D Full Automatic Single-end Parallel Cable Wire Tinning Terminal Crimping Machine
Features

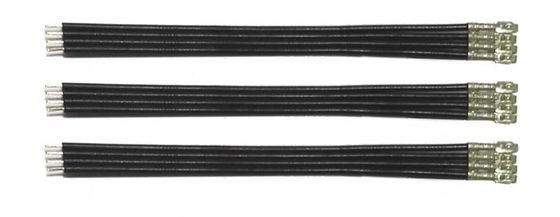

1. The parallel wire terminal crimping machine is specially designed for single-ended wire stripping and crimping, and the other end is stripped, twisted and tinned. The crimping part adopts XY module design to improve the precision of the crimping and ensure the quality of the product.

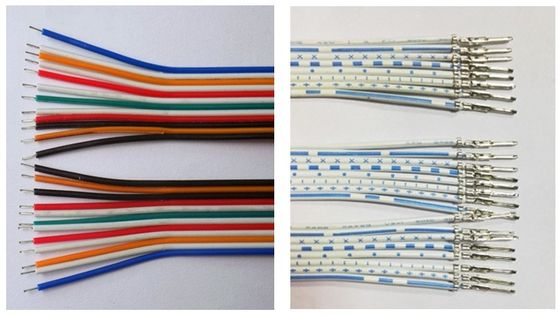

2. The automatic parallel wire crimping machine can realize the functions of A side stripping, half stripping and end punching, and the B side can realize the functions of stripping, half stripping and tinning. All functions are fully computerized and digitalized. The replacement of wires only needs to replace the splitting die accessories and Terminal mold accessories are enough, easy to use, ordinary workers can operate;
3. All core parts of the equipment adopt imported components to ensure the equipment is durable, the machine structure design is simple, easy to operate, maintain and maintain.
4. The production wire range of the automatic parallel wire crimping machine is from 2 P to 12P.
Technical Parameter
| Voltage | 50/60Hz 220V single-phase |
| Cutting Length | 50mm-600mm |
| Applicable cable | 3-12P AWG#28-AWG#22 |
| Capacity |
10P 1,000pcs |
| Stripping Length | 0-7mm |
| Crimping Force | 2 T |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Detection device | optional |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 1,650mm*1,150mm*1,450mm; |
| Weight | about 850kg±15kg |
