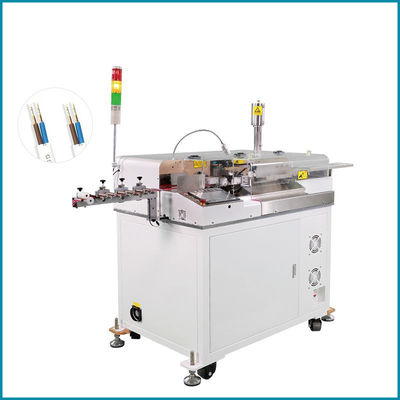

Ac220V Automatic Wire Cutting Stripping And Crimping Machine Multi Function
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150sets/month |
|
Detail Information |
|||
| Automation: | Full Auto | Cutting Length: | 10mm-600mm(600-1500mm Can Be Customized) |
|---|---|---|---|
| Adaptable Wire: | AWG#16-AWG#32 Can Process Double Parallel Wire,FFC | Stripping Length: | 0-20mm |
| Twisting Length: | 3-20mm | Tinning Length: | 0-20mm |
| Cutting Accuracy: | ±(0.2%*L+1)mm | Capacity: | AWG#22-AWG#32,1-8pcs, 9,000-11,000pcs/hr AWG#20-AWG#18, 1-5pcs, 4,000-5,500pcs/hr AWG#18-AWG#16, 1-3pcs, 2,700-3,000pcs/hr |
| Warranty: | 1 Year, 24hr Online Techinical Support | ||
| High Light: | Ac220V Wire Cutting Stripping Machine,1500mm Wire Crimping Machine,Ac220V Automatic Wire Cutting Stripping And Crimping Machine |
||
Product Description

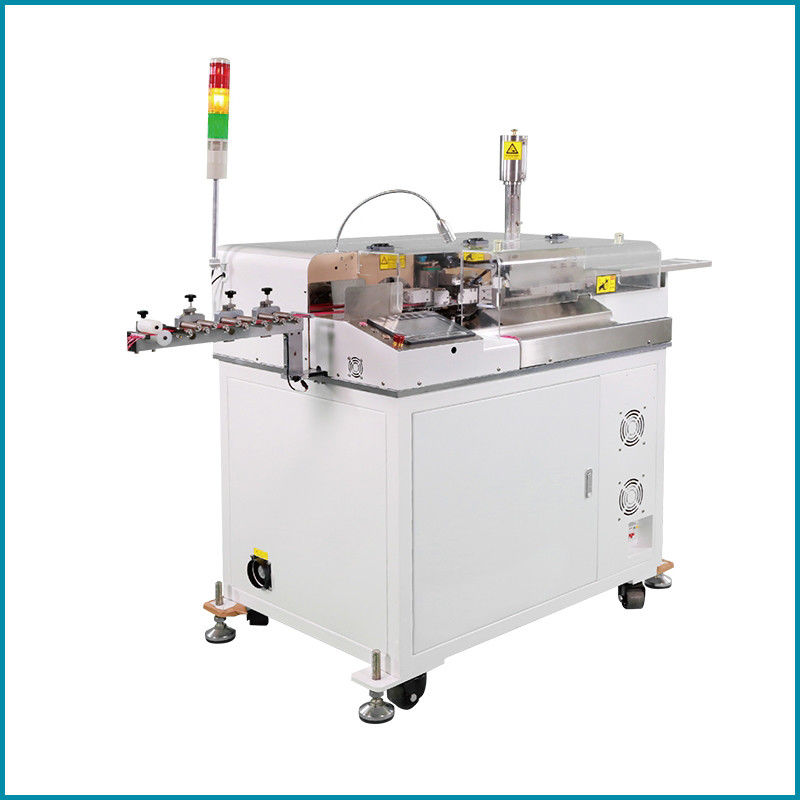

CX-01A Multi Function Automatic Wire Cutting Stripping Crimping Tinning Machine
Functions:
| Name and model of machine | CX-01A Full auto double-end wire tinning machine |

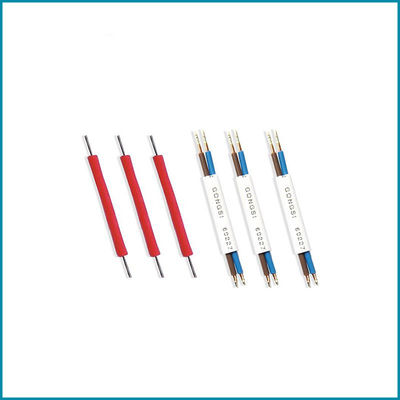

| Main functions | A, B sides wire cutting, stripping, twisting, tinning. with smoke absorbing function |
| Control method | HMI+Microcomputer |

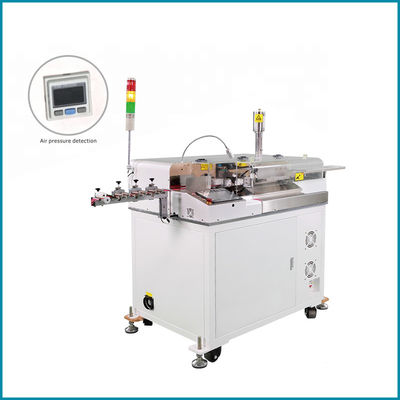

| Detective Device | with wire or not, air pressure detective |
Technical Parameter:
| Voltage | Ac220V single phase, 50/60Hz |
| Cutting length | 10mm-600mm(600-1500mm can be customized) |
| Adaptable wire | AWG#16-AWG#32 can process double parallel wire,FFC |
| Capacity |
AWG#22-AWG#32,1-8pcs, 9,000-11,000pcs/hr AWG#20-AWG#18, 1-5pcs, 4,000-5,500pcs/hr AWG#18-AWG#16, 1-3pcs, 2,700-3,000pcs/hr |
| Stripping Length | 0-20mm |
| Twisting length | 3-20mm |
| Tinning length | 0-20mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air pressure | 0.5-0.7Mpa (5-7kg/m³) |
| Diamension | 1,210*770*1,270mm |
| Weight | about 380kg±15kg |
Device Configuration
| Motor | 6 sets of Japan Mitsubishi servo motors |
| Pneumatic Components | Cylinder, air pipe and air pressure regulating valve are all provided by Japanese SMC original factory + 11 sets of SMC Cylinder；3 sets of an air pressure regulating valve, 9 sets of SMC magnetic valve |
| Screw | 3 sets of TBI |
| Slide | 5 sets Taiwan Hiwin |
| Sensor | Japanese Panasonic |
| Belt | American Gates Brand |
| Bearing | Japnese NSK |
| Blades | t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable |
