35 Tons Plastic Vertical Injection Moulding Machine Electric Cable Plug Making

35 Tons Plastic Vertical Injection Moulding Machine Electric Cable Plug Making

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-ZS350

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: FOB Shenzhen
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Screw Diameter: 30/32/34mm Max. Open Daylight: 420/270mm
Warranty: 1 Year. 24hr Online Technical Guidance
High Light:

35 Tons Vertical Injection Moulding Machine

,

1171kg/cm2 Vertical Injection Moulding Machine

,

820kg/cm2 Plastic Injection Moulding Machine

Product Description

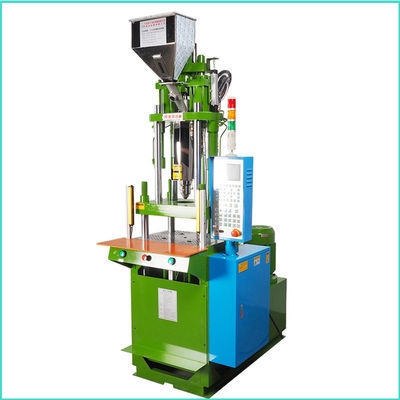

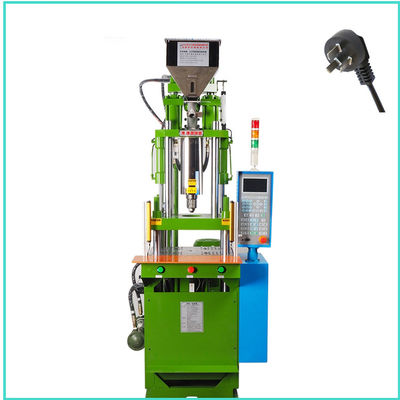

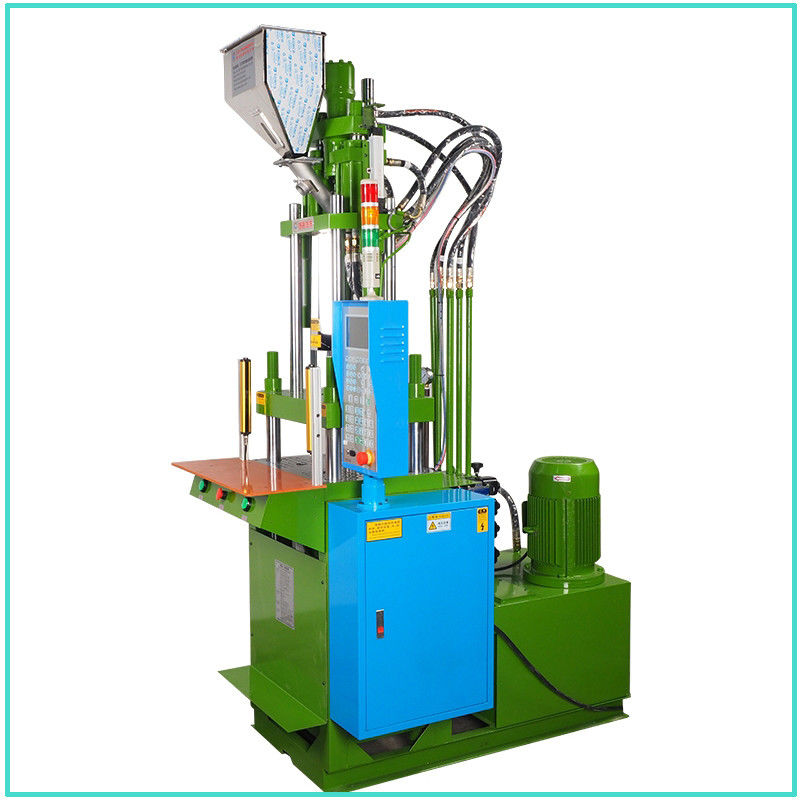

35 Tons Electric Cable Plug Making Plastic Injection Molding Machines

INJECTION UNIT   mm Φ30 Φ32 Φ34
Screw
Technical ParameterDiameter
  cm3 81 92 120
Theoretical Injection Volume
  g(oz) 74(2.6) 84(3.0) 110(106)
Injection Weight(PS)
  cm3/sec 62.5 71 95
Injection Rate
    tons 4.45 4.45 4.45
Nozzle Contact Force
  kg/cm2 1171 996 820
Max.Injection Pressure
  r.p.m 0~190
Screw Speed Rotation
  mm 190
Nozzle Out From Platens
CLAMPING UNIT   tons 45
Clamping Force
  mm 200
Clamping Stroke
  mm 220/70
Min. Mold Thickness
  mm 420/270
Max.Open daylight
  mm 410*250
Distance Between Tie Bars
  mm 580*430
Platen Size
  mm 35
Ejector Distance
  tons 1.76
Ejector Force
OTHERS   kg/cm2 140
Max. Hydaulic Pressure
    L 130
Oil Tank Capacity
  kW(HP) 5.5(7.5)
Pump Heating Power
  kW 2.8
Heater Power
  L*W mm 1.7*1.2
Machine Dimension H mm 3
  tons 2
Machine Weight





Company Profile

Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.


The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.



We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.

Machine Drawing

35 Tons Plastic Vertical Injection Moulding Machine Electric Cable Plug Making 0
