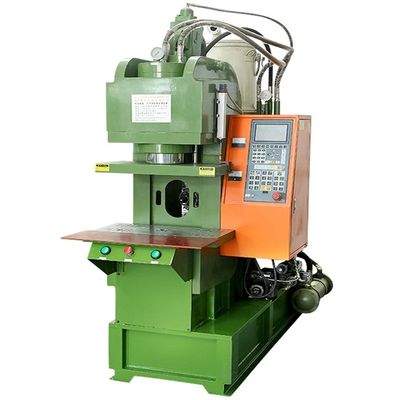

EPS EVA 55T Plug Injection Molding Machine 190mm Injection Rate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-550C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Ejector Stroke(mm): | 100 Mm | Opening Stroke: | 200mm |
|---|---|---|---|
| Warranty: | 1 Year. 24hr Online Technical Guidance | Plastic Processed: | ABS, ABS/PP, EPS, EVA, EVOH, FRPP/PVC, HDPE, HDPE/PP, |
| High Light: | 55T Plug Injection Molding Machine,EPS EVA Plug Injection Molding Machine,190mm EVA Injection Molding Machine |
||
Product Description
55T Plug Injection Molding Machine High-Efficiency Plug Making Machine Price
Specification
| MODEL | UNIT | CX-500C | |||
|
INJECTION UNIT |
Screw Diameter | mm | 32 | 38 | 42 |
| Injection Pressure | kg/cm2 | 1506 | 1063 | 870 | |
| Max.Shot Weight | g | 139 | 196 | 239 | |
| Injection Rate | mm | 190 | |||
| Number of Temperature of Control | 4 | ||||
|
CLAMPING UNIT |
Clamping Force | Tons | 55 | ||
| Plate Size | mm | 480x280 | |||
| Min.Mold Height | mm | 215 | |||
| Opening Stroke | mm | 200 | |||
| Max.Opening Daylight | mm | 415 | |||
| Ejetor Force | Tons | 1.5 | |||
| Ejetor Stoke | mm | 135 | |||
|
POWER UNIT |
Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Output | L/min | 40 | |||
| Oil Resservoir Capacity | L | 280 | |||
| Pump Motor Power | KW/HP | 7.5/10 | |||
| Berrel Heating Power | KW | 4.35 | |||
| Total Weight | KW | 13 | |||
| OTHER | Machine Weight | Tons | 4.4 | ||
| Machine Dimension(LxWxH) | m | 3x1.2x2.1 | |||
| Shipping Weight | Tons | 5 | |||
| Shipping Measurement(LxWxH) | m | 3.1x1.3x2.3 | |||
Company Profile
Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.
The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.
We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
Machine Drawing
Machine Drawing
Factory direct, more sizes can be customized according to your needs!
