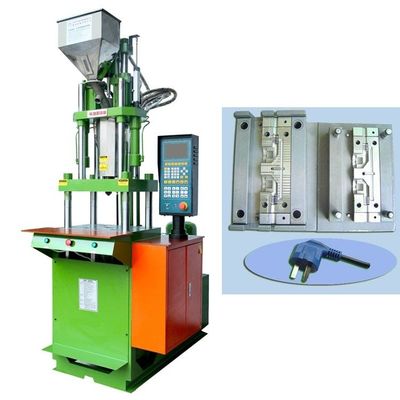

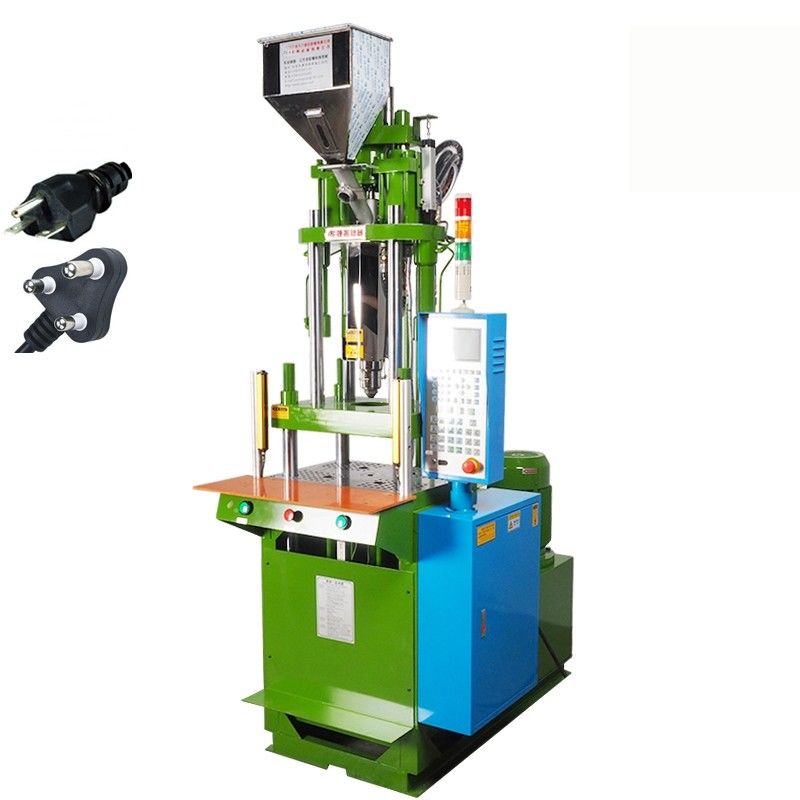

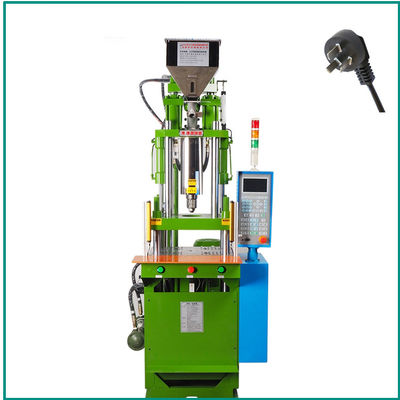

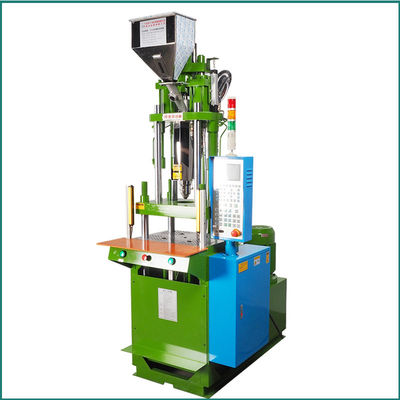

EVOH FRPP Mini Vertical Injection Moulding Machine

EVOH FRPP Mini Vertical Injection Moulding Machine

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-350S

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: FOB Shenzhen
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Screw Diameter: 30/32/34mm Max. Open Daylight: 420/270mm
Warranty: 1 Year. 24hr Online Technical Guidance Plastic Processed: ABS, ABS/PP, EPS, EVA, EVOH, FRPP/PVC, HDPE, HDPE/PP,
High Light:

FRPP Vertical Injection Moulding Machine

,

EVOH Vertical Injection Moulding Machine

,

350S Mini Injection Moulding Machine

Product Description

Parameter of Single Slide Table Plastic Vertical Injection Moulding Machine

Model Unit CX-250S CX-450S CX-550ST
Screw Barrel Diameter mm 26 28 30 30 32 34 32 35 42
Injection Pressure kg/cm2 1530 1278 886 1171 996 820 1642 1385 960
Max. Shot Weight gram 56 64 74 74 84 106 102 123 176
Max. Shot Weight cm3/sec 57 66 75.5 62.5 71 95 49 59 84
Screw Barrel Route mm 115 115 140
Screw Barrel Rotary Speed rpm 0-205 0-190 0-175
Nozzle Contact Force tons 4.45 4.45 5.5
Nozzle Retraction Nozzle mm 170 190 210
Number of Temperature Control pcs 3 3 3
Clamping Force tons 35 45 55
Platen Size mm 540*380 580*430 670*480
Distance Between Tie Bere mm 375*205 410*250 470*280
Min. Mold Height mm 158/58 220/70 270/70
Opening Stroke mm 180 200 200
Max. Opening Mold Distance mm 338/238 420/270 470/270
Ejetor Force tons 1.3 1.76 1.76
Ejetor Stoke mm 35 35 35
Max. Hydraulic Pressure kg/cm2 140 140 140
Pump Output L/min 34.5 37.2 40
Oil Resservoir Capacity Liter 100 130 150
Cooling Water Consumption L/hr 400-600 600-800 800-1000
Pump Motor Power kw/hp 3.75/5HP 5.5/7.5HP 7.5/10HP
Barrel Heating Power kw 2.4 2.8 4.5
Total Power kw 6.3 9 12
Machine Weight tons 0.92 1.8 3
Machine Dimension(LxWxH) meter 1.55*0.93*2.45 1.7*1.2*3 1.85*1.2*3
Shipping Weight tons 1.12 2 3.4
Shipping Measurements(LxWxH) meter 1.55*1.14*2.44 1.82*1.18*2.44 2.0*1.15*2.6




Company Profile

Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.


The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.



We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
