Double End Dip Wire Tinning Machine 50mm To 400mm Cutting Length
Product Details:
Place of Origin: | CHINA |
Brand Name: | CHENXIN |
Certification: | ISO90001 |
Model Number: | CX-01A+T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1/Set |
---|---|
Price: | Fob Shenzhen |
Packaging Details: | wooden case |
Payment Terms: | T/T |
Supply Ability: | 150 sets per month |
Detail Information |
|||
Automation: | Full Auto | Cutting Length: | 50-400mm |
---|---|---|---|
Stranding Length: | 30-400mm | Stripping Length: | 0.1-6 |
Twisting Length: | 3-5mm | Tinning Length: | 0.5-7mm |
High Light: | Double End Wire Tinning Machine,Wire Tinning Machine 50mm,400mm Dip Tinning Machine |
Product Description

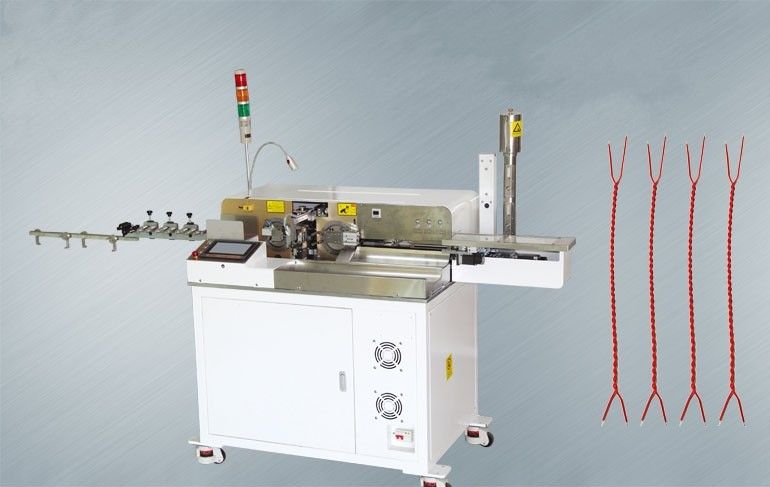

CX-01A+T Full Automatic Wire Cable Double End Dip Tinning Stranding Machine
Product features

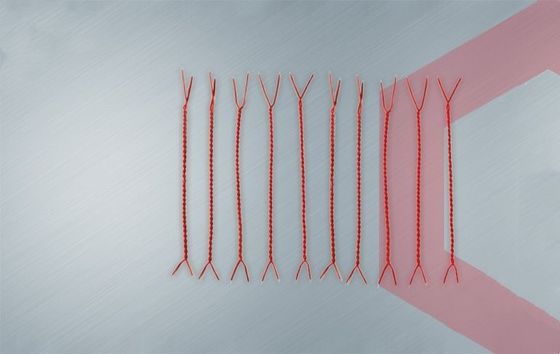

1. Automatic stranding tinning machine can achieve double-end peeling, double-ended twisting tinning, stranding function. The machine is stable and durable
2. Automatic double-headed tinning stranding machine has automatic smoking absorbing function can reduce the harm of flux to human body
3. Automatic double-head tin machine cut and strand the cable, two strands one. The strand part can be disassembled as needed. stranding parameters can be set on the touch screen. Adjustment is convenient and simple.
Technical parameter:
model | CX-01A+T Full Automatic Wire Cable Double End Dip Tinning Stranding Machine |
Voltage | AC 220V 50/60 Hz |
Capacity | 1,200pcs-1,800pcs |
Adaptable wire | AWG#24-AWG#30 |
Cutting Length | 50-400mm |
Stranding length | 30-400mm |
stripping length | 0.1-6mm |
twisting length | 3-5mm |
tinning length | 0.5-7mm |
air pressure | 0.5-0.7Mpa |
Dimension | 1,210mm*770mm*1,370mm |
weight | about 430kg |
